Free 4 Bed Dark House Plan – 3,494 Sq Ft
Materials
Clinker / Dark Blend
Cladding
Gray Stucco
Foundation
Charcoal Shingle
Roofing
Putty / Almond
Windows & Trim
Charcoal
Front Door
Clinker / Dark Blend
Cladding
Gray Stucco
Foundation
Charcoal Shingle
Roofing
Putty / Almond
Windows & Trim
Charcoal
Front Door
Materials
Clinker / Dark Blend
Cladding · Masonry
Gray Stucco
Foundation · Stucco
Charcoal Shingle
Roofing · Asphalt Shingle
Putty / Almond
Windows & Trim · Vinyl
Charcoal
Front Door · Painted
About This Design
This 3,494 sqft house features a substantial exterior clad in deep charcoal brick, complemented by a dark hip roof. It offers 3 bedrooms and 4 bathrooms, alongside a functional 462 sqft attached garage. The design includes a generous 501 sqft outdoor living space, perfect for everyday enjoyment. The balanced facade and clean lines create a grounded and inviting feel.
Features
- hip
- 2-car attached
- brick
- stucco
Interior Layout

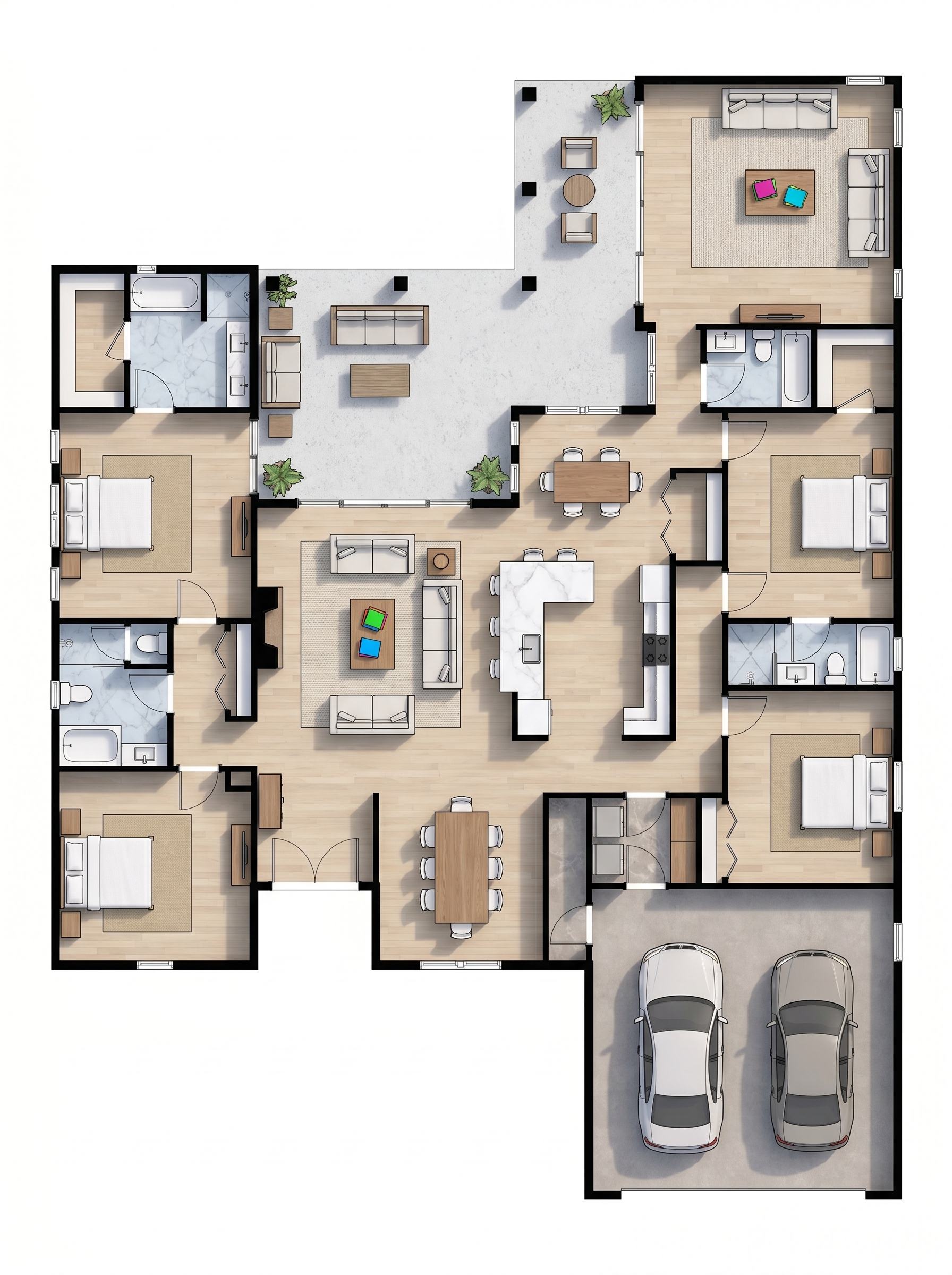

The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.
Shape & Structure
The footprint shows the outline and proportions of this design.
Footprint
Loading footprint...
3D Preview
Loading 3D preview...
Move forward
with this design
Click above to see preview
Share and print ready PDF
Present and compare designs with clients, builders, and family
Workflow-ready Plan DXF
Layered polylines with block-based doors and windows (download example)
Works with your tools
Import into AutoCAD, Revit, SketchUp, Chief Architect, and more
