Spacious Bright 4-Bed House
by Pat
Bright · 3,132 ft² · 4 bd · 2 ba
Free House PlanPrintable PDFPlan DXFAI House PlanAutoCAD, Revit & SketchUp
Free printable house plan PDF + workflow-ready DXF
Explore this free AI house plan with room-by-room layout details, printable PDF sharing, and plan DXF files built for AutoCAD, Revit, SketchUp, and Chief Architect workflows.
Review the exterior, floor plan, dimensions, and materials, then download a sample DXF to preview the CAD structure.
Free 4 Bed Earthy House Plan – 3,174 Sq Ft
Materials
Limestone
Cladding
Smooth Gray
Foundation
Natural Slate
Roofing
Dark Bronze
Windows & Trim
Charcoal
Front Door
Limestone
Cladding
Smooth Gray
Foundation
Natural Slate
Roofing
Dark Bronze
Windows & Trim
Charcoal
Front Door
Materials
Limestone
Cladding · Natural Stone
Smooth Gray
Foundation · Concrete
Natural Slate
Roofing · Slate
Dark Bronze
Windows & Trim · Aluminum
Charcoal
Front Door · Painted
About This Design
This 3,174 sqft Earthy home offers 4 beds and 3 baths. The exterior features light stacked stone, a dark hip roof, and dark window frames. Interior highlights include a large kitchen, dining, and living area, plus a dedicated office and sunroom. Practical spaces like a 2-car attached garage, mudroom, pantry, and laundry complete this functional design.
Features
- hip
- 2-car attached
- stone

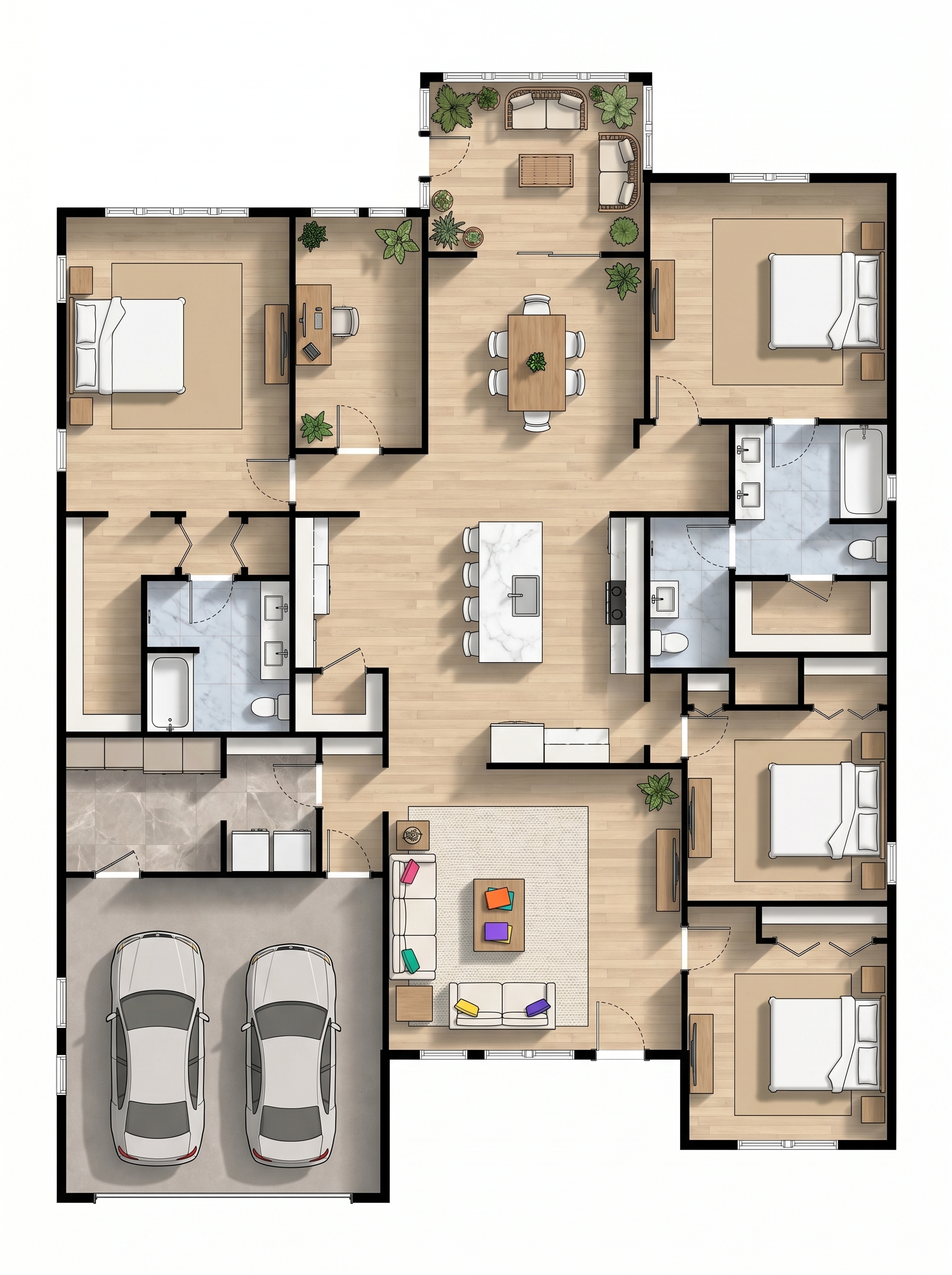

Interior Layout
The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.
Shape & Structure
The footprint shows the outline and proportions of this design.
Footprint
Loading footprint...
3D Preview
Loading 3D preview...
Make this plan yours
Remix this house and explore versions made from the same plan.
