Sprawling 5-Bed Bright
by Lauren
Bright · 5,985 ft² · 5 bd · 5 ba
Free House PlanPrintable PDFPlan DXFAI House PlanAutoCAD, Revit & SketchUp
Free printable house plan PDF + workflow-ready DXF
Explore this free AI house plan with room-by-room layout details, printable PDF sharing, and plan DXF files built for AutoCAD, Revit, SketchUp, and Chief Architect workflows.
Review the exterior, floor plan, dimensions, and materials, then download a sample DXF to preview the CAD structure.
Free 5 Bed Bright House Plan – 6,475 Sq Ft
About This Design
This 6,475 square foot Bright design offers 5 bedrooms and 5 bathrooms. The exterior showcases clean white wood siding beneath a broad hip roof, complemented by a welcoming covered front porch with classic columns. Inside, the plan includes a theater, two dedicated office spaces, two gyms, and an expansive pool area. An attached 2-car garage adds practical functionality to this substantial residence.
Features
- hip
- 2-car attached
- wood siding
- asphalt shingles
- covered porch

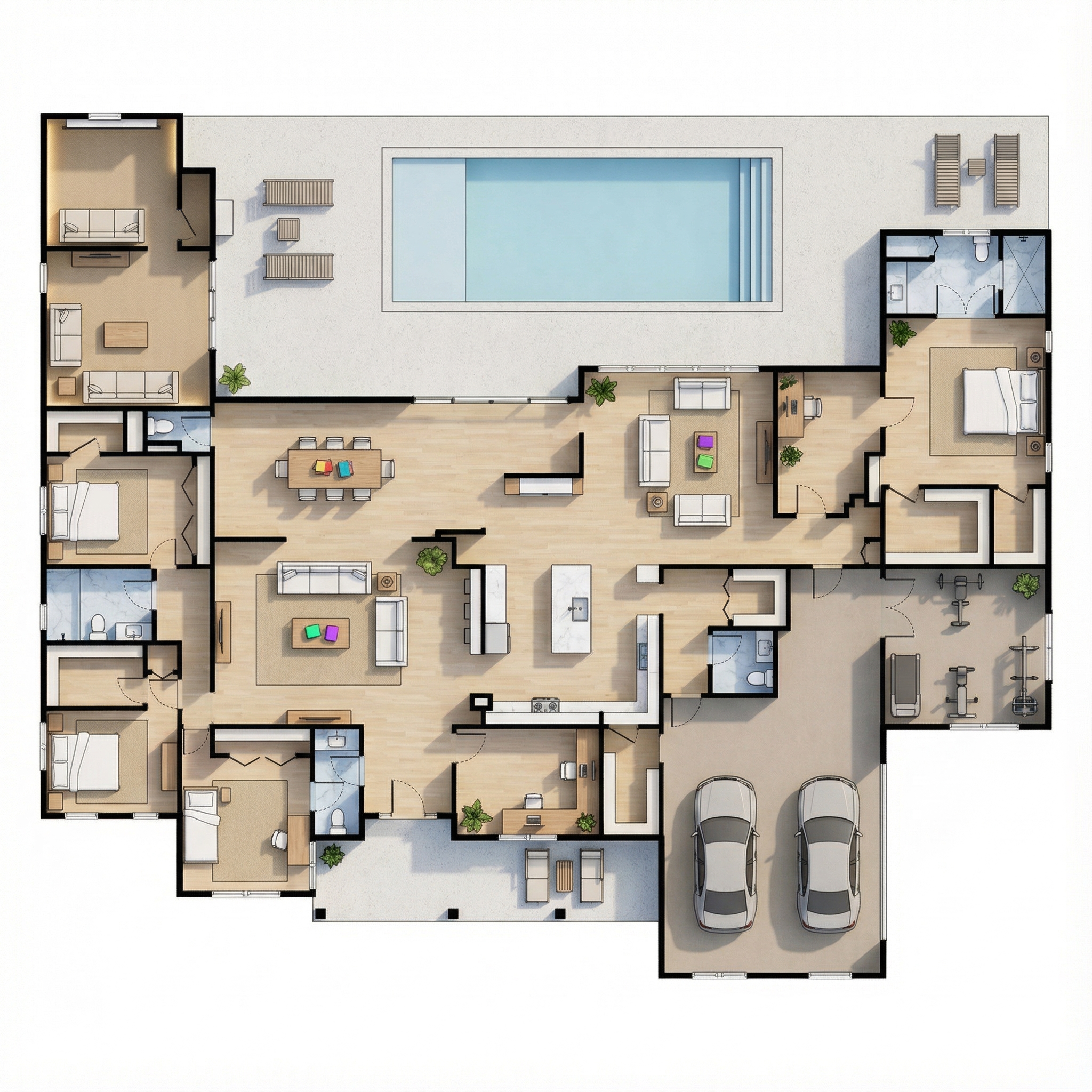

Interior Layout
The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.
Shape & Structure
The footprint shows the outline and proportions of this design.
Footprint
Loading footprint...
3D Preview
Loading 3D preview...
