Bright 3-Bed with Pool
by Stephen
Bright · 4,176 ft² · 3 bd · 3 ba
Explore this free AI house plan with room-by-room layout details, printable PDF sharing, and plan DXF files built for AutoCAD, Revit, SketchUp, and Chief Architect workflows.
Review the exterior, floor plan, dimensions, and materials, then download a sample DXF to preview the CAD structure.


Charcoal
Cladding

Ledgestone
Foundation

Charcoal Shingle
Roofing

White
Windows & Trim

Black
Front Door

Charcoal
Cladding

Ledgestone
Foundation

Charcoal Shingle
Roofing

White
Windows & Trim

Black
Front Door

Charcoal
Cladding · Fiber Cement

Ledgestone
Foundation · Stacked Stone

Charcoal Shingle
Roofing · Asphalt Shingle

White
Windows & Trim · Vinyl

Black
Front Door · Painted
This spacious 8,432 sqft house design features a Dark exterior palette, offering 3 bedrooms and 3 bathrooms. Highlights include a generous 715 sqft front porch, a spacious 1901 sqft 3-car attached garage, and an impressive 2063 sqft pool area. The interior boasts a large primary suite, multiple sunrooms, an office, and a dedicated rec room, providing diverse living spaces. The exterior combines dark gray horizontal siding with a light stone base and crisp white trim, topped with a dark hip roof.

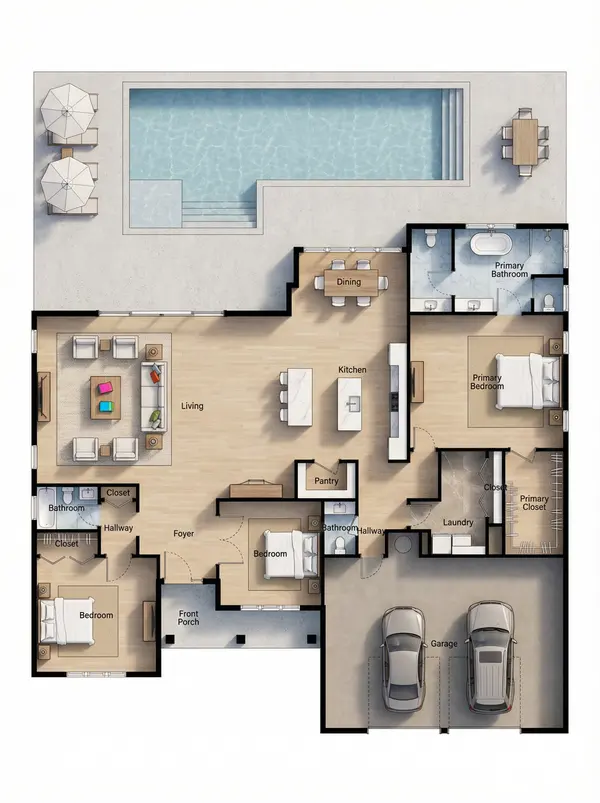

The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.

The footprint shows the outline and proportions of this design.
Share and print ready PDF
Present and compare designs with clients, builders, and family
Workflow-ready Plan DXF
Layered polylines with block-based doors and windows (download example)
Works with your tools
Import into AutoCAD, Revit, SketchUp, Chief Architect, and more
