Free 6 Bed Earthy House Plan – 3,892 Sq Ft

6 bedroom earthy house plan exterior - 3,892 sq ft

Materials

Terracotta

Terracotta

Cladding

Cultured Stone

Cultured Stone

Foundation

Desert Tan

Desert Tan

Roofing

Black

Black

Windows & Trim

White

White

Front Door

About This Design

This Earthy house plan spans 3,892 square feet, offering 6 bedrooms and 8 bathrooms across its 87' x 78' footprint. The design features a warm terracotta stucco exterior complemented by a tan hip roof and a subtle stone base, creating a grounded and inviting aesthetic. Inside, the layout includes a spacious kitchen, dining area, family room, rec room, and dedicated office, along with a generous outdoor living space for relaxation.

Features

  • hip
  • none
  • stucco
  • stone

Interior Layout

The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.

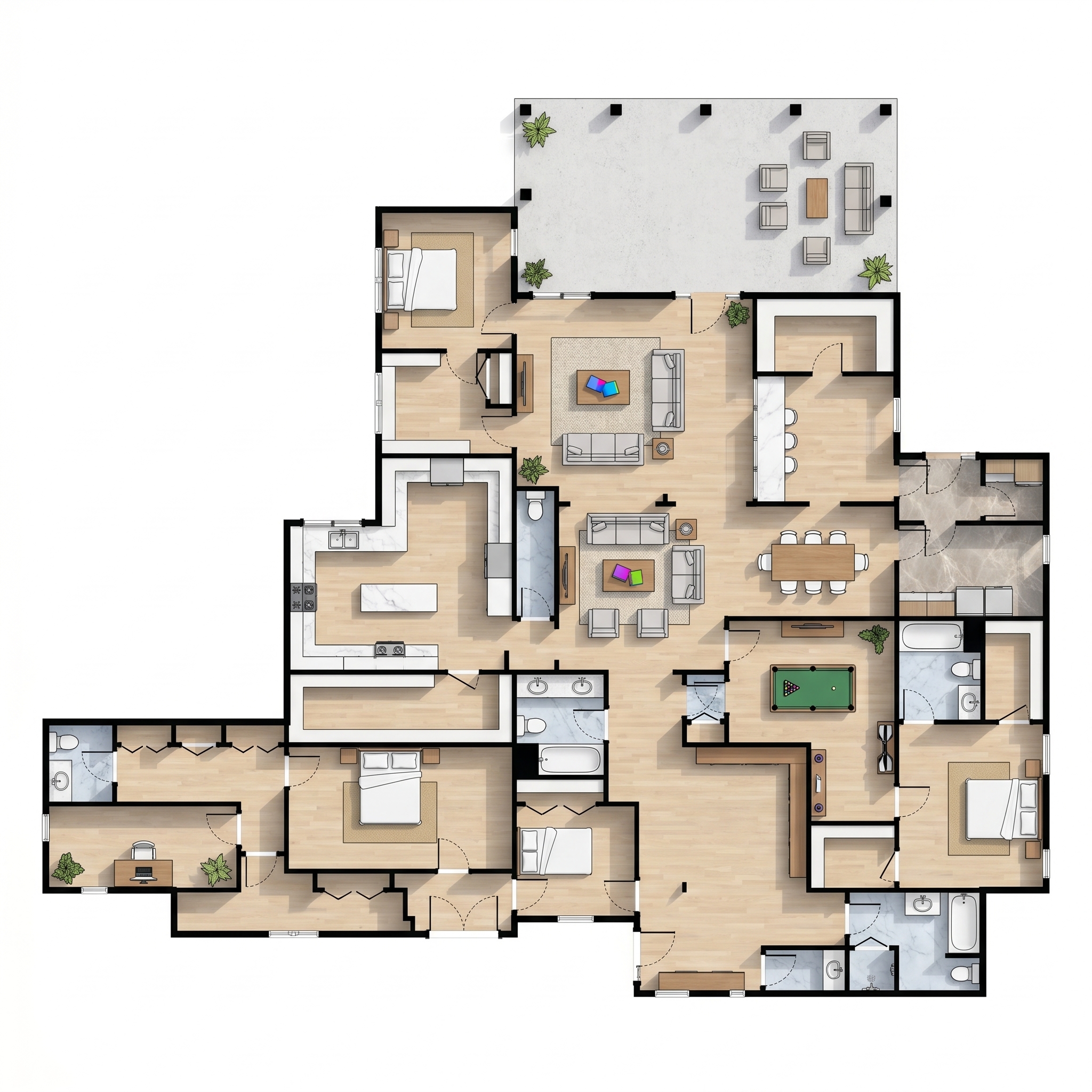

6 bedroom earthy floor plan showing 9 bathrooms - 3,892 sq ft

Shape & Structure

The footprint shows the outline and proportions of this design.

Footprint

Loading footprint...

3D Preview

Loading 3D preview...

Move forward
with this design

Click above to see preview

Share and print ready PDF

Present and compare designs with clients, builders, and family

Workflow-ready Plan DXF

Layered polylines with block-based doors and windows (download example)

Works with your tools

Import into AutoCAD, Revit, SketchUp, Chief Architect, and more
