Bright 3-Bed Home
by MURRAY
Bright · 3,010 ft² · 3 bd · 3 ba
Free House PlanPrintable PDFPlan DXFAI House PlanAutoCAD, Revit & SketchUp
Free printable house plan PDF + workflow-ready DXF
Explore this free AI house plan with room-by-room layout details, printable PDF sharing, and plan DXF files built for AutoCAD, Revit, SketchUp, and Chief Architect workflows.
Review the exterior, floor plan, dimensions, and materials, then download a sample DXF to preview the CAD structure.
Free 3 Bed Dark House Plan – 3,273 Sq Ft
Materials
Black
Cladding
River Rock
Foundation
Onyx Black
Roofing
Dark Bronze
Windows & Trim
Black
Front Door
Black
Cladding
River Rock
Foundation
Onyx Black
Roofing
Dark Bronze
Windows & Trim
Black
Front Door
Materials
Black
Cladding · Board & Batten
River Rock
Foundation · Natural Stone
Onyx Black
Roofing · Asphalt Shingle
Dark Bronze
Windows & Trim · Aluminum
Black
Front Door · Painted
About This Design
This sprawling dark house plan offers 3,273 square feet, featuring 3 bedrooms and 4 bathrooms. The exterior showcases a striking combination of dark horizontal siding and a natural stone veneer, complemented by warm wood-framed windows. Key amenities include a dedicated office, a spacious 529 sqft attached garage, a 351 sqft outdoor living area, and a welcoming covered front porch.
Features
- gable
- 2-car attached
- wood siding
- stone
- covered porch
- outdoor living area

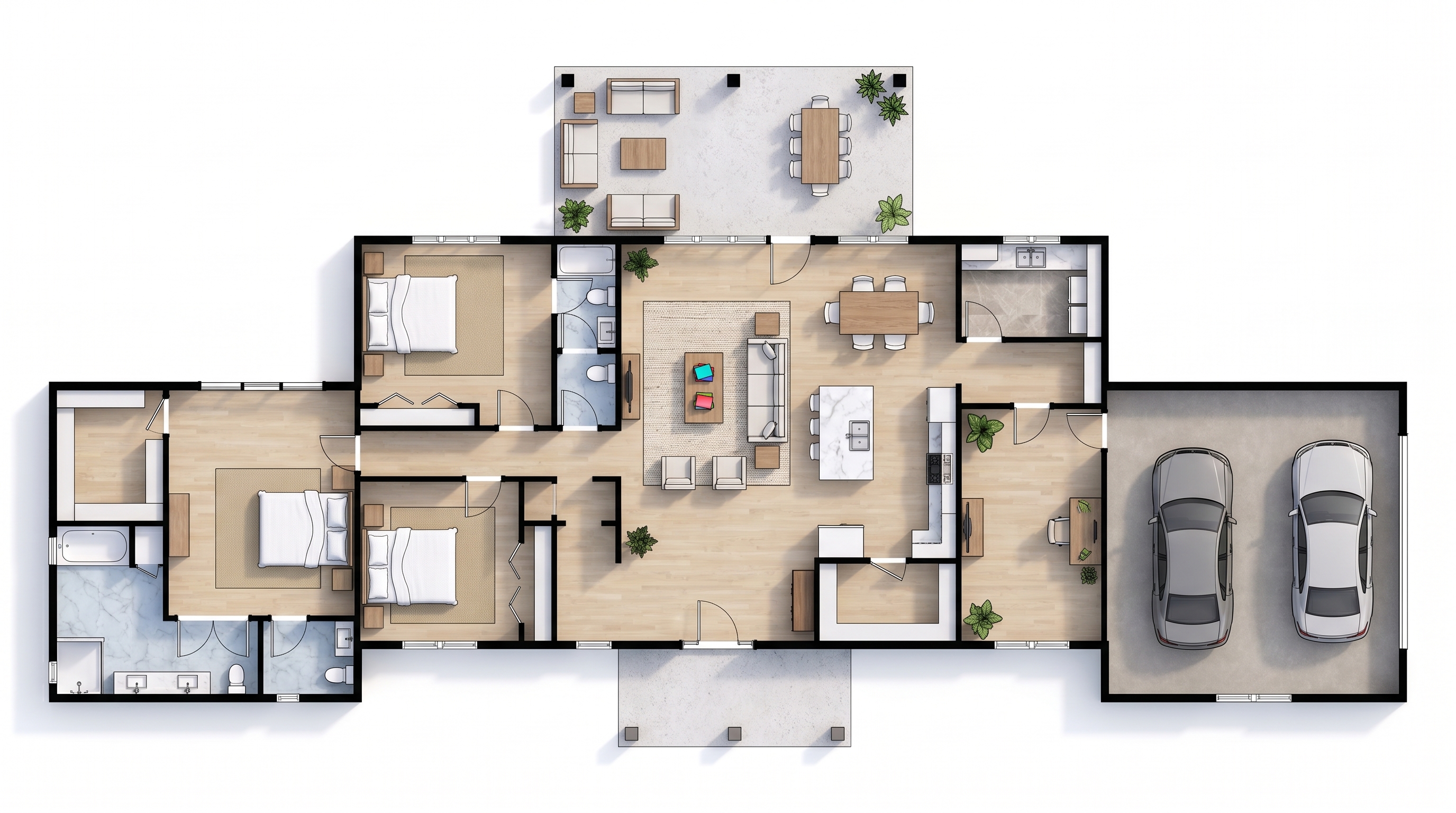

Interior Layout
The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.
Shape & Structure
The footprint shows the outline and proportions of this design.
Footprint
Loading footprint...
3D Preview
Loading 3D preview...
