Free 2 Bed Bright House Plan – 2,235 Sq Ft
Materials
Smooth White
Cladding
Limestone
Foundation
Spanish Clay Tile
Roofing
Dark Bronze
Windows & Trim
Hunter Green
Front Door
Smooth White
Cladding
Limestone
Foundation
Spanish Clay Tile
Roofing
Dark Bronze
Windows & Trim
Hunter Green
Front Door
Materials
Smooth White
Cladding · Stucco
Limestone
Foundation · Natural Stone
Spanish Clay Tile
Roofing · Clay Tile
Dark Bronze
Windows & Trim · Aluminum
Hunter Green
Front Door · Painted
About This Design

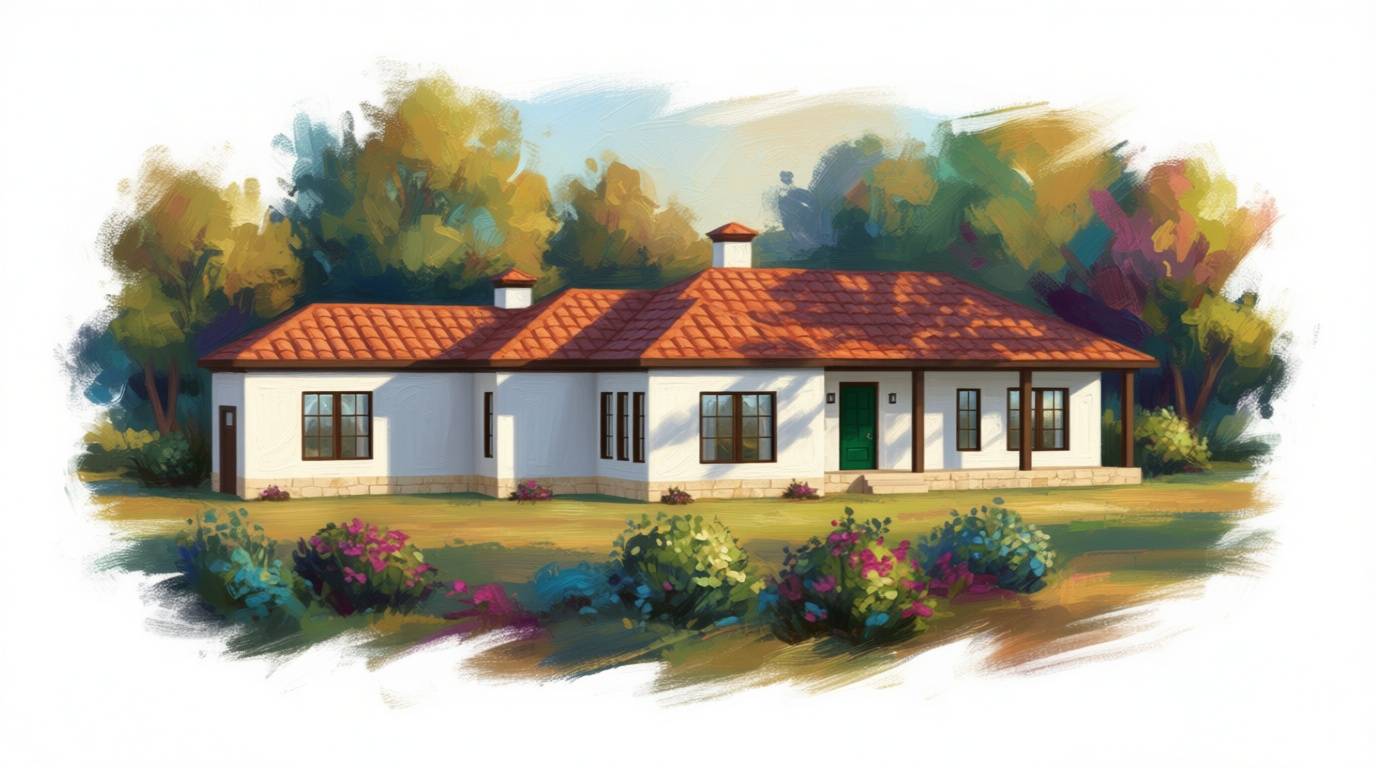

This bright house plan spans 2,235 square feet, offering 2 bedrooms and 3 bathrooms. It features a classic white stucco exterior with a distinctive red clay tile hip roof and dark-framed windows. The design includes a welcoming covered front porch, a dedicated office, a 1-car attached garage, and a spacious outdoor living area for relaxation.
Features
- hip
- 1-car attached
- stucco
- clay tile
- stone base
- dark framed windows
- covered porch
- chimneys
- stone base

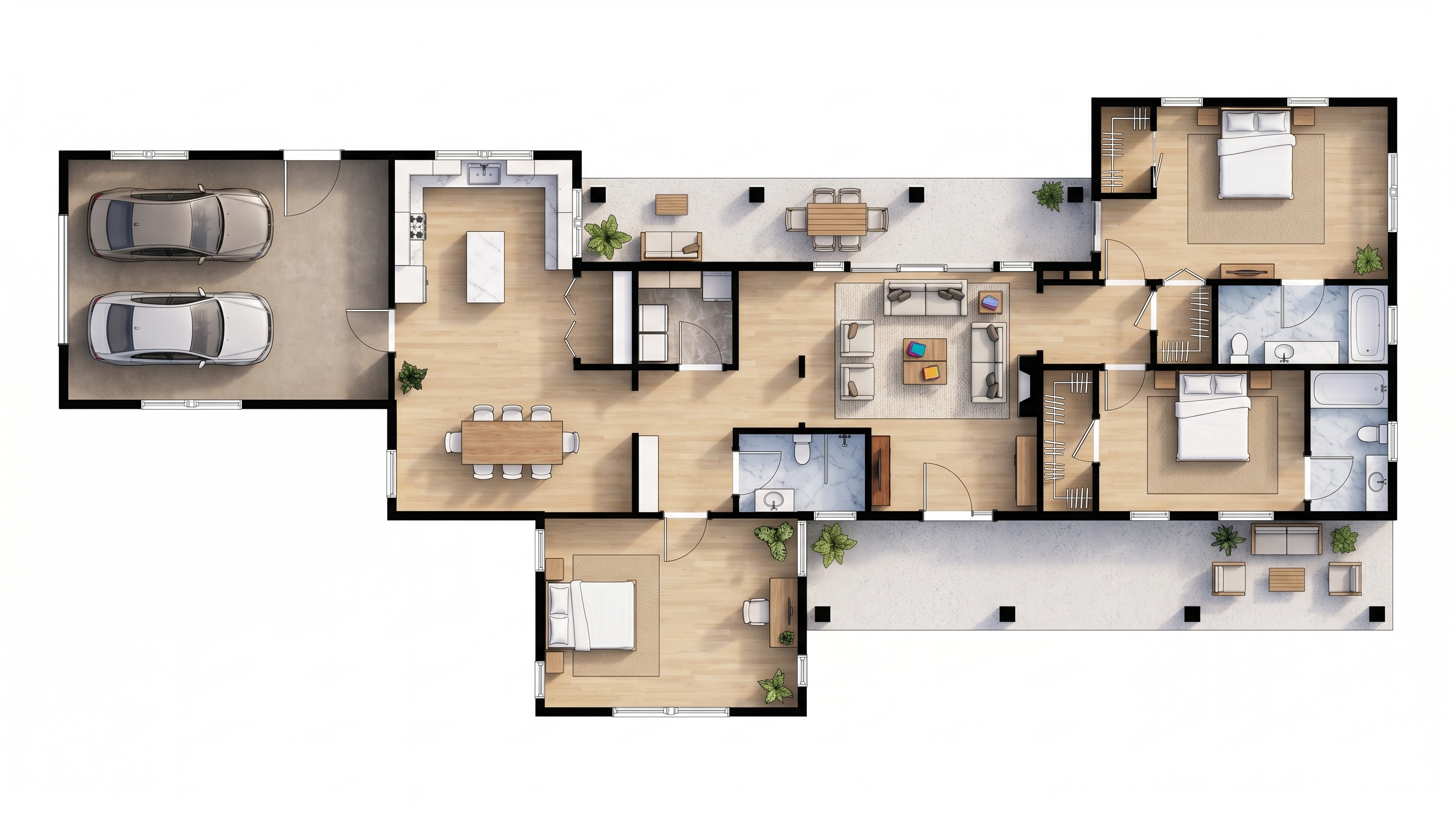

Interior Layout
The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.
Shape & Structure
The footprint shows the outline and proportions of this design.
Footprint
