Earthy 1-Bed Home
by Fernando
Earthy · 1,748 ft² · 1 bd · 1 ba
Free House PlanPrintable PDFPlan DXFAI House PlanAutoCAD, Revit & SketchUp
Free printable house plan PDF + workflow-ready DXF
Explore this free AI house plan with room-by-room layout details, printable PDF sharing, and plan DXF files built for AutoCAD, Revit, SketchUp, and Chief Architect workflows.
Review the exterior, floor plan, dimensions, and materials, then download a sample DXF to preview the CAD structure.
Free 1 Bed Dark House Plan – 1,810 Sq Ft
Materials
Dove Gray
Cladding
Slate Veneer
Foundation
Charcoal Shingle
Roofing
Black
Windows & Trim
White
Front Door
Dove Gray
Cladding
Slate Veneer
Foundation
Charcoal Shingle
Roofing
Black
Windows & Trim
White
Front Door
Materials
Dove Gray
Cladding · Fiber Cement
Slate Veneer
Foundation · Natural Stone
Charcoal Shingle
Roofing · Asphalt Shingle
Black
Windows & Trim · Aluminum
White
Front Door · Painted
About This Design
Discover this 1,810 sqft Dark house plan featuring 1 bedroom and 1 bathroom. The exterior combines light grey horizontal siding with a dark stone base and a hip roof. Inside, enjoy a dedicated office space, a large living area, and a generous primary suite. This design also includes a convenient 2-car attached garage.
Features
- hip
- 2-car attached
- siding
- stone
- hip roof

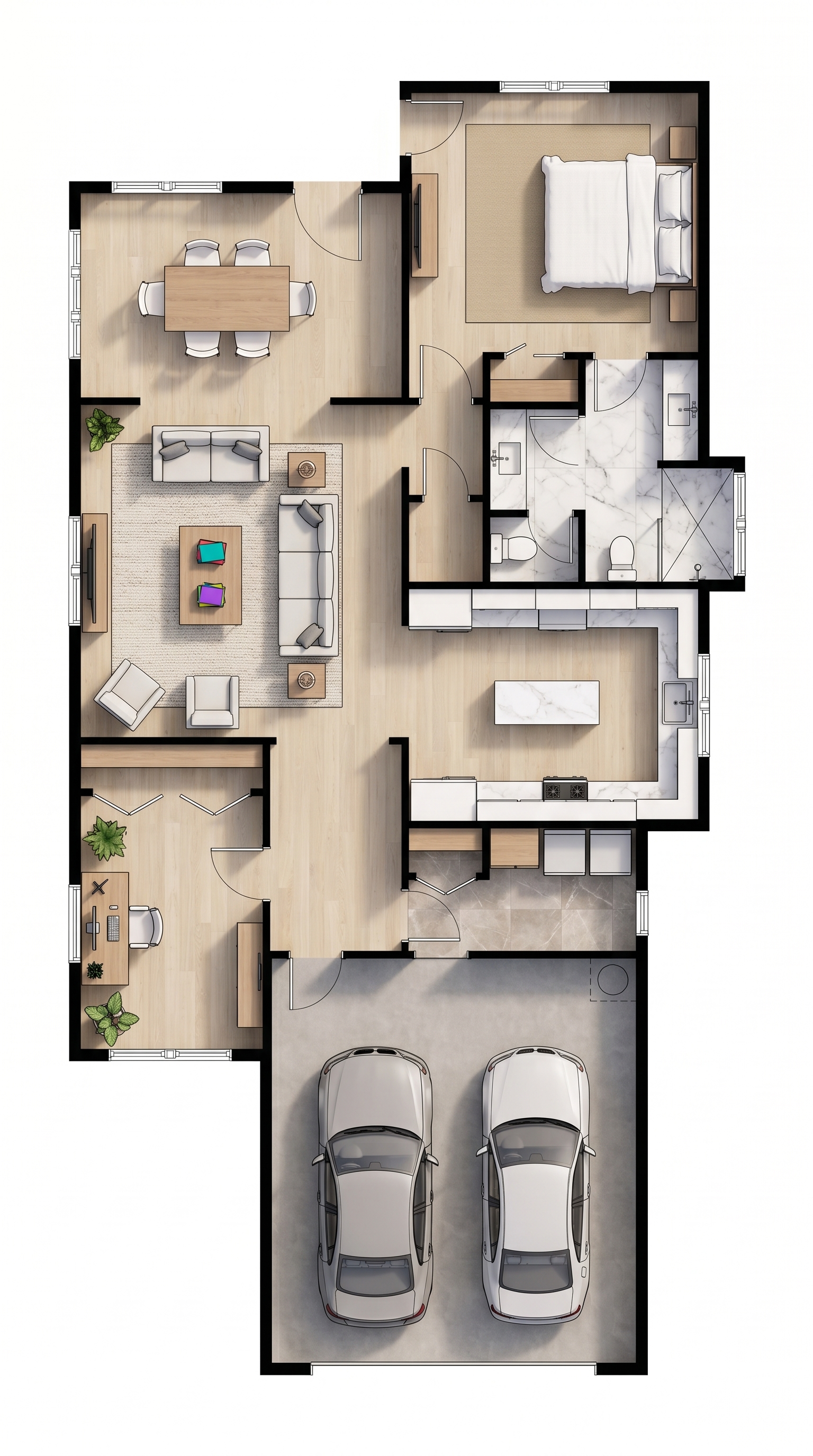

Interior Layout
The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.
Shape & Structure
The footprint shows the outline and proportions of this design.
Footprint
