Bright 1-Bed Home
by Robert
Bright · 589 ft² · 1 bd · 1 ba
Free House PlanPrintable PDFPlan DXFAI House PlanAutoCAD, Revit & SketchUp
Free printable house plan PDF + workflow-ready DXF
Explore this free AI house plan with room-by-room layout details, printable PDF sharing, and plan DXF files built for AutoCAD, Revit, SketchUp, and Chief Architect workflows.
Review the exterior, floor plan, dimensions, and materials, then download a sample DXF to preview the CAD structure.
Free 1 Bed Bright House Plan – 774 Sq Ft
Materials
Smooth White
Cladding
White
Foundation
Standing Seam Black
Roofing
Black
Windows & Trim
Natural Oak
Front Door
Smooth White
Cladding
White
Foundation
Standing Seam Black
Roofing
Black
Windows & Trim
Natural Oak
Front Door
Materials
Smooth White
Cladding · Stucco
White
Foundation · Board & Batten
Standing Seam Black
Roofing · Metal
Black
Windows & Trim · Aluminum
Natural Oak
Front Door · Wood
About This Design

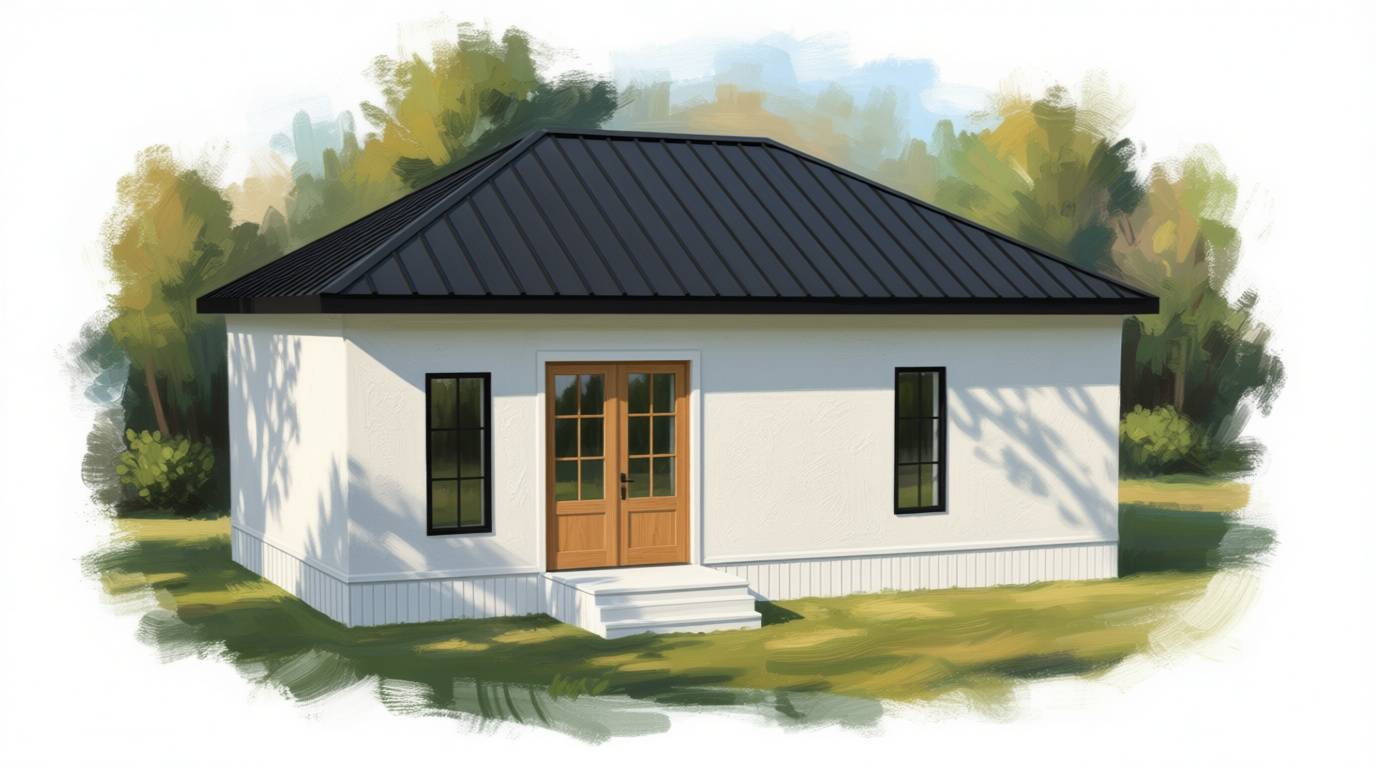

This bright house design offers a compact 774 sqft footprint with 1 bedroom and 1 bathroom. The exterior features clean white textured siding complemented by a dark metal hip roof and striking black-framed vertical windows. A warm natural wood double entry door with simple steps provides a welcoming entrance. The floorplan includes a functional kitchen, a primary bedroom with a dedicated closet, and a separate laundry area.
Features
- hip
- none
- stucco
- metal
- wood siding
- steps
- vertical windows
Interior Layout

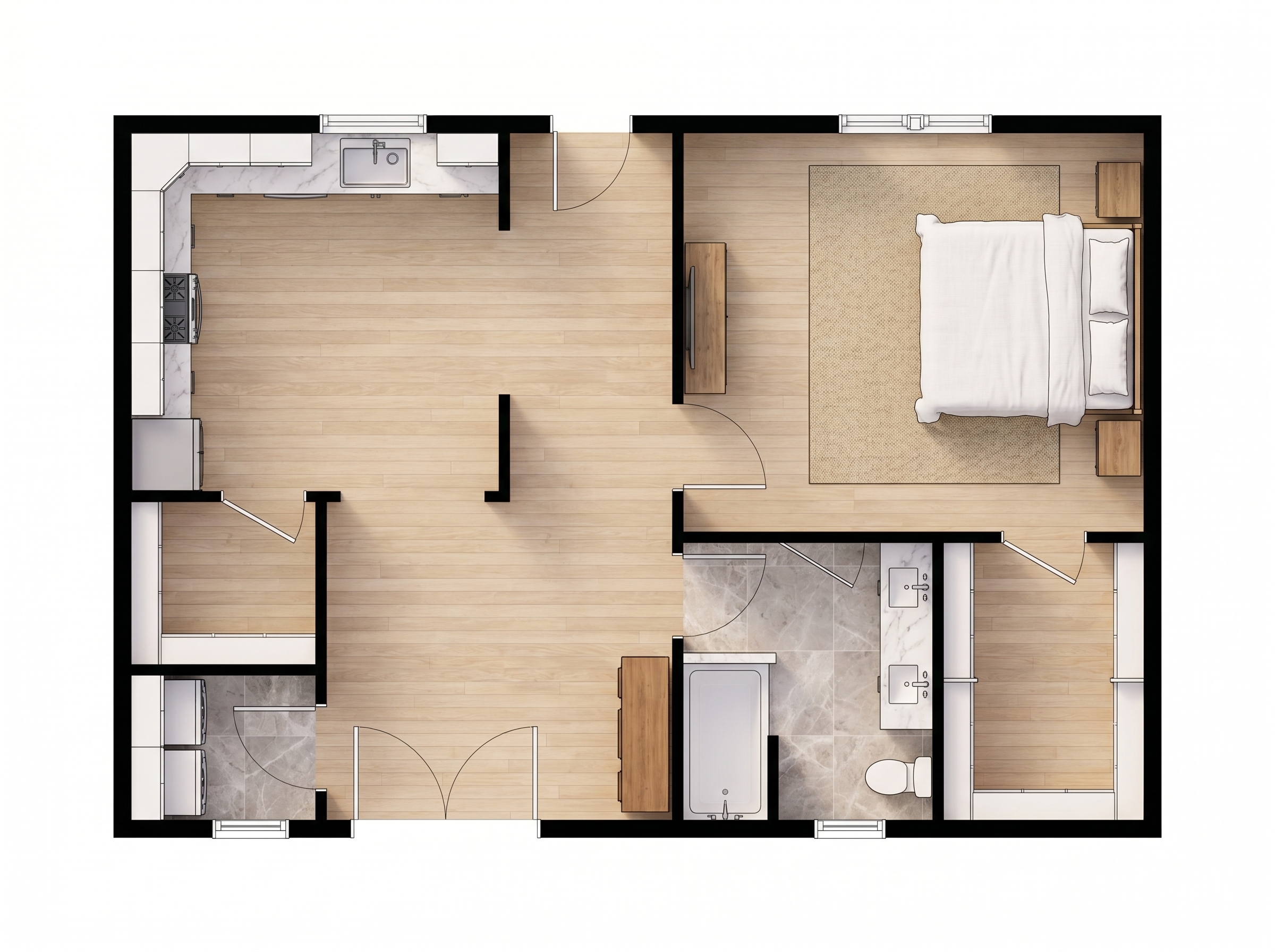

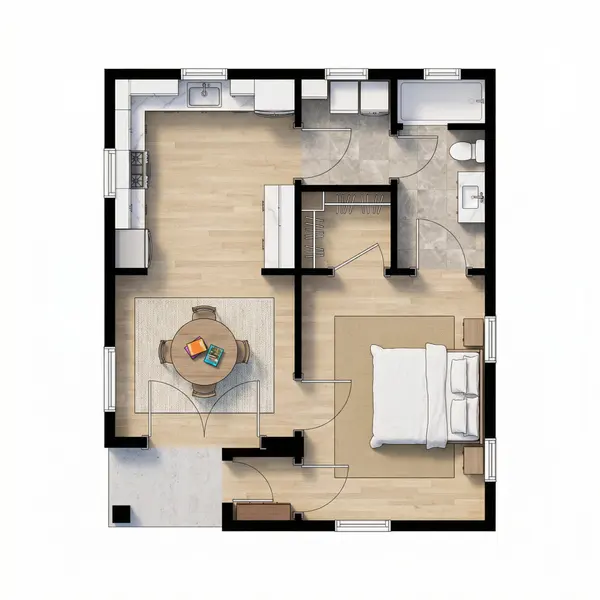

The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.
Shape & Structure
The footprint shows the outline and proportions of this design.
Footprint
Loading footprint...
3D Preview
Loading 3D preview...
