Compact Bright 1-Bed Home
by Ashish
Bright · 646 ft² · 1 bd · 1 ba
Explore this free AI house plan with room-by-room layout details, printable PDF sharing, and plan DXF files built for AutoCAD, Revit, SketchUp, and Chief Architect workflows.
Review the exterior, floor plan, dimensions, and materials, then download a sample DXF to preview the CAD structure.


Standing Seam Black
Cladding

Board-Formed
Foundation

Red / Barn Red
Roofing

Black
Windows & Trim

Black
Front Door

Standing Seam Black
Cladding

Board-Formed
Foundation

Red / Barn Red
Roofing

Black
Windows & Trim

Black
Front Door

Standing Seam Black
Cladding · Metal

Board-Formed
Foundation · Concrete

Red / Barn Red
Roofing · Metal

Black
Windows & Trim · Aluminum

Black
Front Door · Painted
This 1-bed, 1-bath house offers 779 sq ft of efficient living space, designed within a 21' x 38' footprint. The exterior showcases dark vertical wood siding paired with a striking red metal hip roof, creating a bold, contemporary aesthetic. Inside, the functional layout includes a primary bedroom with closet, a dedicated office, a practical kitchen, and a comfortable living area, complemented by a convenient laundry room.

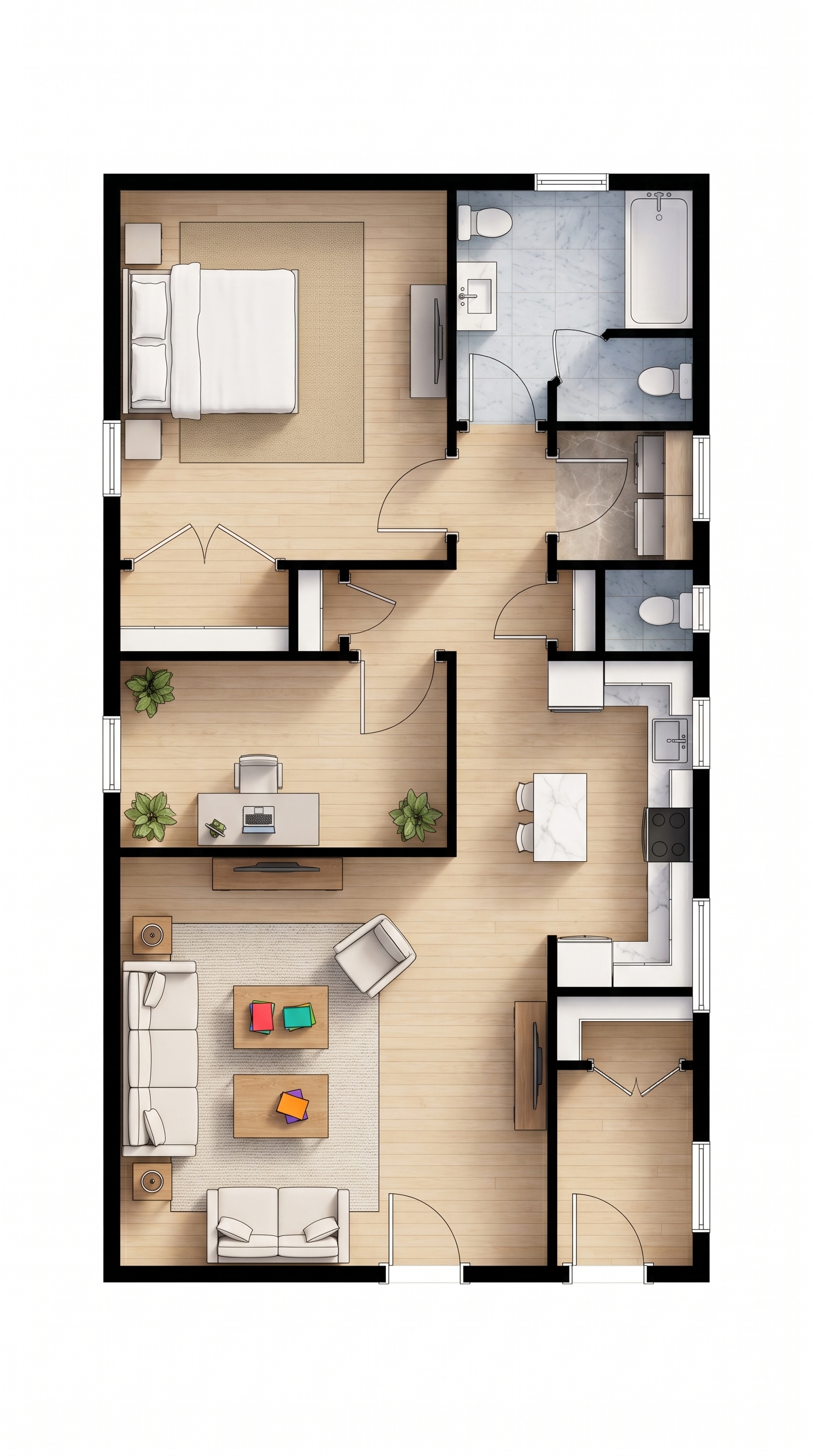

The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.

The footprint shows the outline and proportions of this design.
