Free printable house plan PDF + workflow-ready DXF

Explore this free AI house plan with room-by-room layout details, printable PDF sharing, and plan DXF files built for AutoCAD, Revit, SketchUp, and Chief Architect workflows.

Review the exterior, floor plan, dimensions, and materials, then download a sample DXF to preview the CAD structure.

Free 3 Bed Earthy House Plan – 2,370 Sq Ft

3 bedroom earthy house plan exterior - 2,370 sq ft

Materials

Sage Green

Sage Green

Cladding

Limestone

Limestone

Foundation

Weathered Wood

Weathered Wood

Roofing

Putty / Almond

Putty / Almond

Windows & Trim

Charcoal

Charcoal

Front Door

About This Design

This home spans 2,370 square feet, offering a comfortable 3-bedroom, 4-bathroom layout. The exterior features earthy green horizontal siding complemented by a light stone foundation, all beneath a multi-faceted hip roof. A welcoming covered front porch with classic columns adds curb appeal, creating a warm and inviting atmosphere. Inside, the design includes a spacious living area, dining room, kitchen with pantry, and a dedicated laundry room for daily convenience.

Features

  • hip
  • none
  • wood siding
  • stone
  • covered porch
  • columns

Interior Layout

The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.

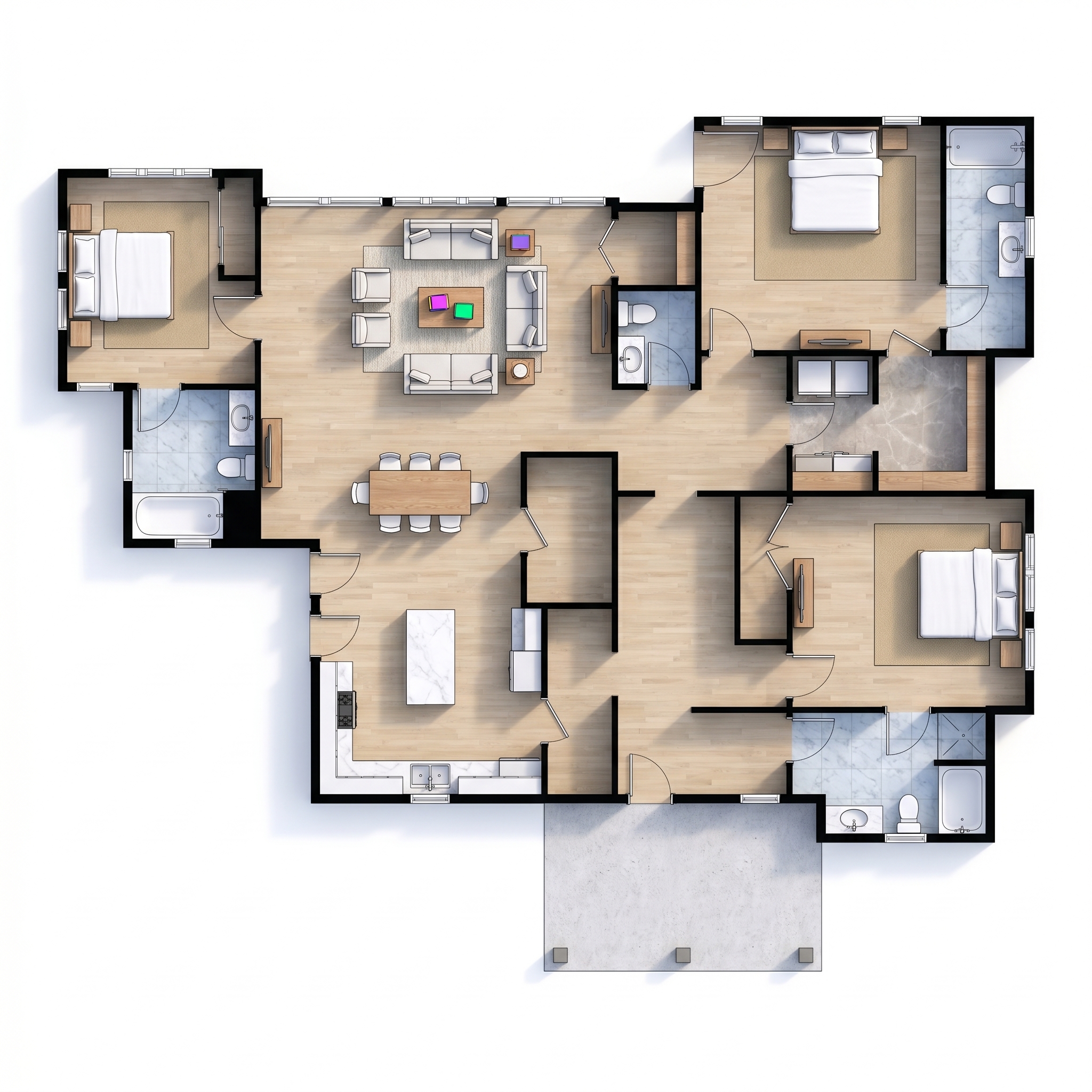

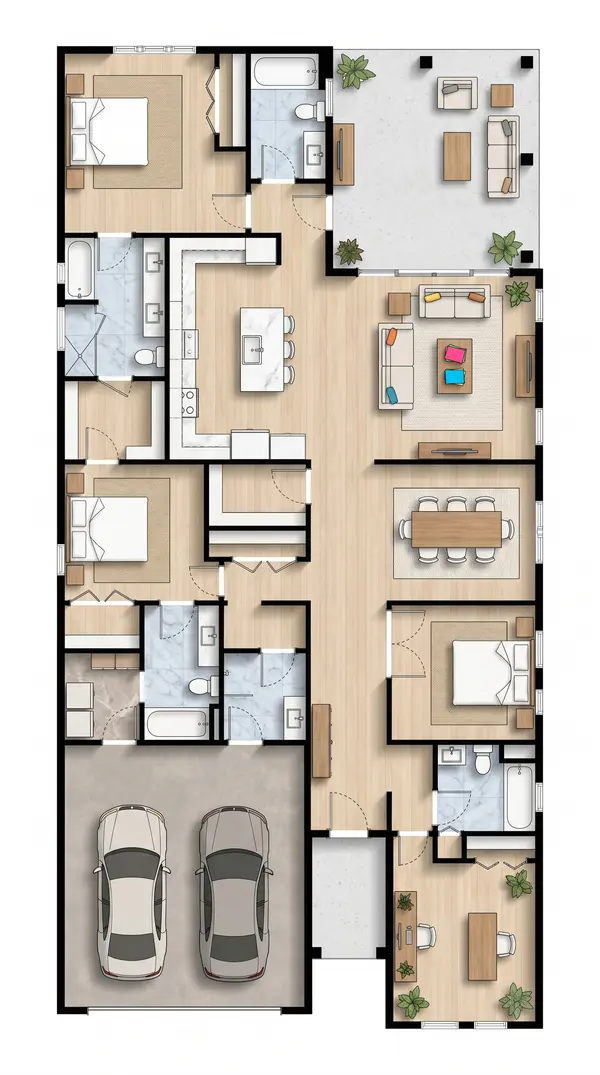

3 bedroom earthy floor plan showing 4 bathrooms - 2,370 sq ft

Shape & Structure

The footprint shows the outline and proportions of this design.

Footprint

Loading footprint...

3D Preview

Loading 3D preview...

Move forward
with this design

Click above to see preview

Share and print ready PDF

Present and compare designs with clients, builders, and family

Workflow-ready Plan DXF

Layered polylines with block-based doors and windows (download example)

Works with your tools

Import into AutoCAD, Revit, SketchUp, Chief Architect, and more
