Spacious Classic 3-Bed Home
by hana
Classic · 2,939 ft² · 3 bd · 4 ba
Free House PlanPrintable PDFPlan DXFAI House PlanAutoCAD, Revit & SketchUp
Free printable house plan PDF + workflow-ready DXF
Explore this free AI house plan with room-by-room layout details, printable PDF sharing, and plan DXF files built for AutoCAD, Revit, SketchUp, and Chief Architect workflows.
Review the exterior, floor plan, dimensions, and materials, then download a sample DXF to preview the CAD structure.
Free 3 Bed Classic House Plan – 2,468 Sq Ft
Materials
Dove Gray
Cladding
Slate Veneer
Foundation
Charcoal Shingle
Roofing
White
Windows & Trim
White
Front Door
Dove Gray
Cladding
Slate Veneer
Foundation
Charcoal Shingle
Roofing
White
Windows & Trim
White
Front Door
Materials
Dove Gray
Cladding · Fiber Cement
Slate Veneer
Foundation · Natural Stone
Charcoal Shingle
Roofing · Asphalt Shingle
White
Windows & Trim · Vinyl
White
Front Door · Painted
About This Design
This classic house plan offers 2,468 sqft of living space with 4 bedrooms and 3 bathrooms. The exterior features horizontal grey siding complemented by dark stone accents on the lower facade and a hip roof. Inside, find a spacious primary bedroom, a large kitchen, dining area, and a dedicated outdoor living space, making it ideal for comfortable everyday living.
Features
- hip
- none
- horizontal siding
- stone
- covered porch

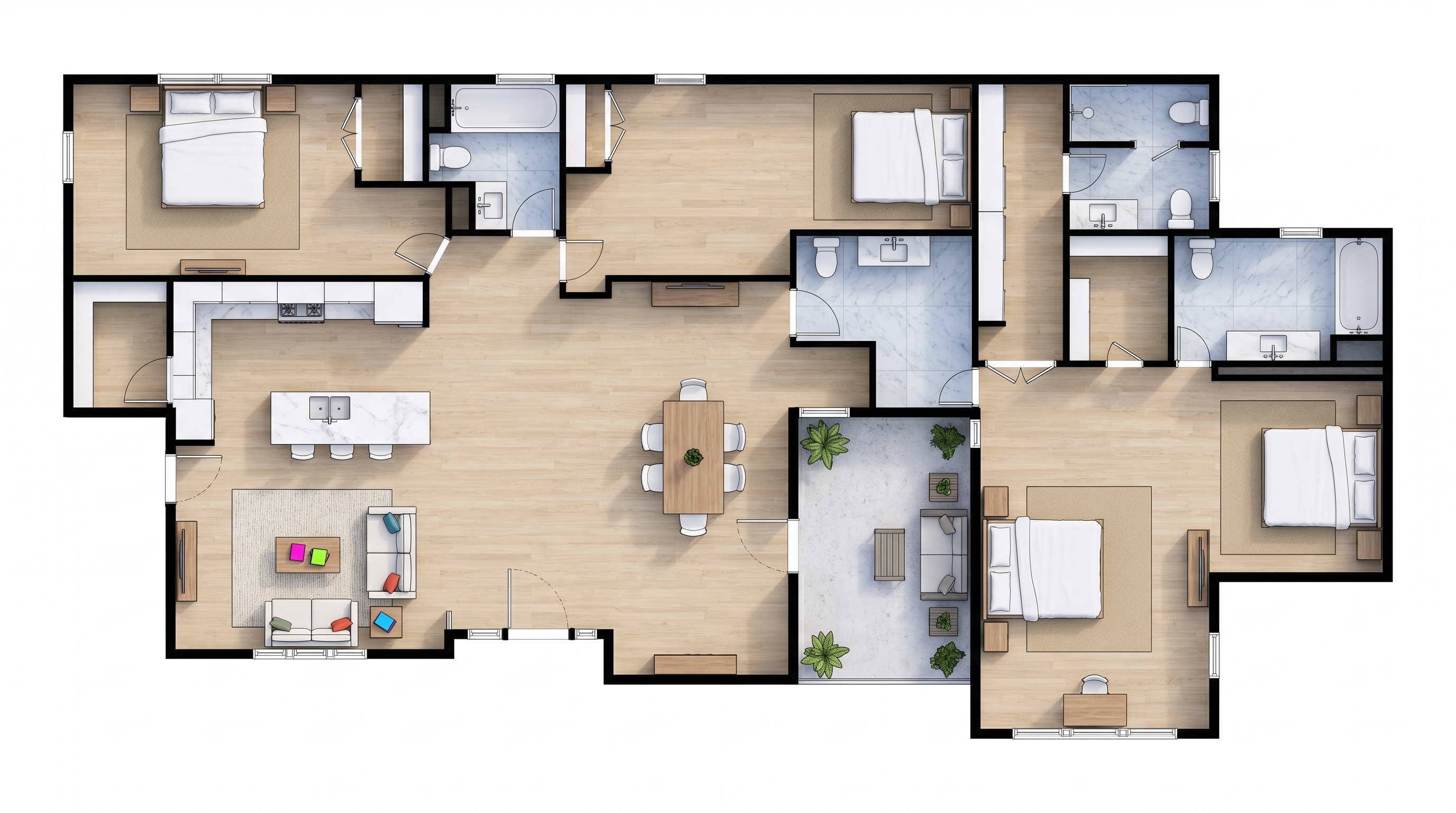

Interior Layout
The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.
Shape & Structure
The footprint shows the outline and proportions of this design.
Footprint
