Bright 6-Bed House Design
by Salavat
Bright · 4,713 ft² · 6 bd · 4 ba
Free House PlanPrintable PDFPlan DXFAI House PlanAutoCAD, Revit & SketchUp
Free printable house plan PDF + workflow-ready DXF
Explore this free AI house plan with room-by-room layout details, printable PDF sharing, and plan DXF files built for AutoCAD, Revit, SketchUp, and Chief Architect workflows.
Review the exterior, floor plan, dimensions, and materials, then download a sample DXF to preview the CAD structure.
Free 6 Bed Classic House Plan – 4,674 Sq Ft
Materials
Ledgestone
Cladding
Fieldstone
Foundation
Charcoal Shingle
Roofing
Dark Bronze
Windows & Trim
Charcoal
Front Door
Ledgestone
Cladding
Fieldstone
Foundation
Charcoal Shingle
Roofing
Dark Bronze
Windows & Trim
Charcoal
Front Door
Materials
Ledgestone
Cladding · Stacked Stone
Fieldstone
Foundation · Natural Stone
Charcoal Shingle
Roofing · Asphalt Shingle
Dark Bronze
Windows & Trim · Aluminum
Charcoal
Front Door · Painted
About This Design
This expansive 4,674 sq ft home features a classic stone exterior with a prominent hip roofline. Designed with 5 bedrooms and 4 bathrooms, it includes a generous primary suite, a dedicated office, and a sunroom. The layout offers large living and kitchen spaces, complemented by a substantial 890 sq ft attached garage and a welcoming front porch, perfect for diverse family needs.
Features
- hip
- 2-car attached
- stone
- covered porch
- stone cladding
Interior Layout

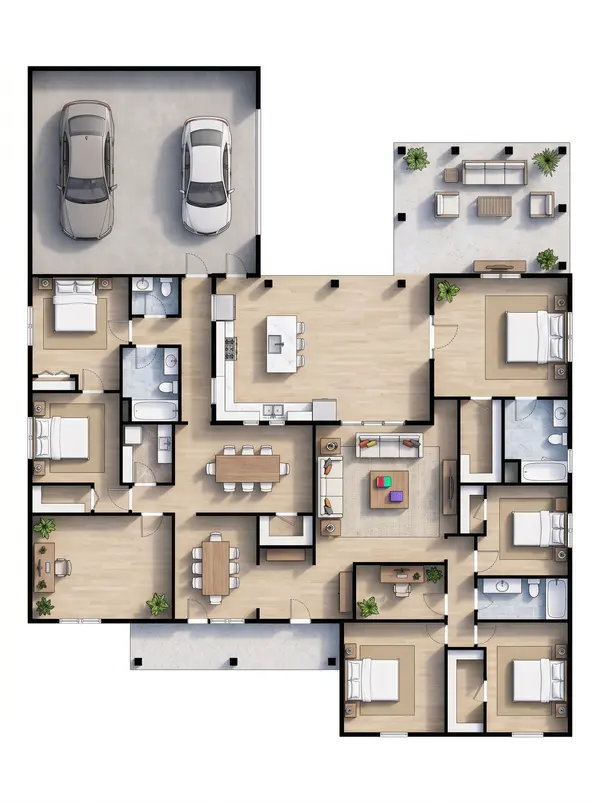

The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.
