Free 1 Bed Bold House Plan – 1,916 Sq Ft

1 bedroom bold house plan exterior - 1,916 sq ft

Materials

Dove Gray

Dove Gray

Cladding

Black

Black

Foundation

Onyx Black

Onyx Black

Roofing

Black

Black

Windows & Trim

Black

Black

Front Door

About This Design

This 1,916 sq ft bold house plan features a single bedroom and bathroom, ideal for efficient living. The exterior showcases light horizontal siding contrasted with dark trim, window frames, and a dark hip roof, creating a distinct aesthetic. Key amenities include a spacious 437 sq ft outdoor living area, a welcoming 181 sq ft covered front porch, and a 262 sq ft attached 1-car garage. Its clean lines and striking color palette define its contemporary appeal.

Features

  • hip
  • 1-car attached
  • horizontal siding
  • dark trim
  • covered porch

Interior Layout

The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.

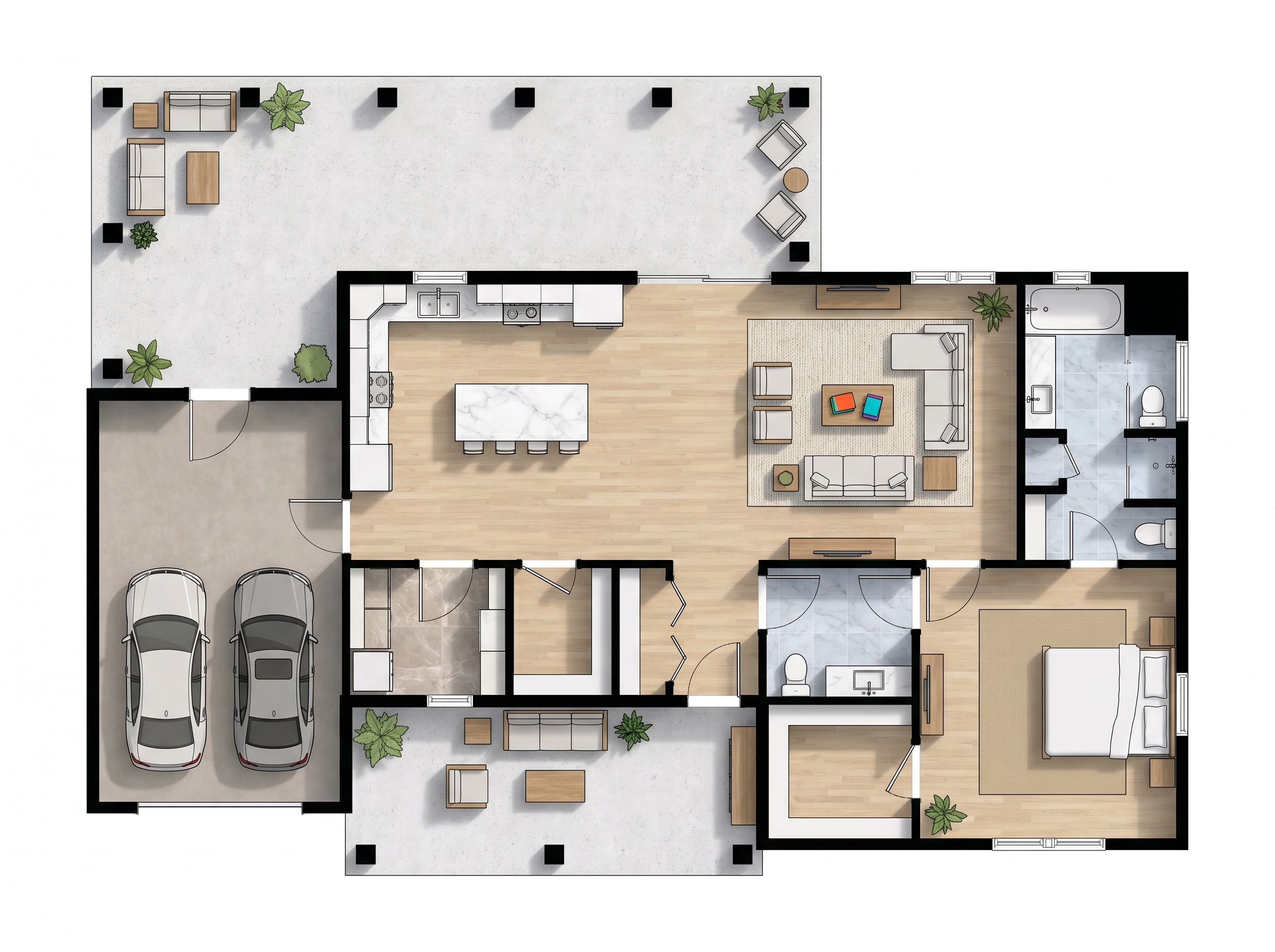

1 bedroom bold floor plan showing 1 bathrooms - 1,916 sq ft

Shape & Structure

The footprint shows the outline and proportions of this design.

Footprint
