Free 4 Bed Dark House Plan – 6,823 Sq Ft
Materials
Standing Seam Black
Cladding
Smooth Gray
Foundation
Onyx Black
Roofing
Black
Windows & Trim
Bold Red
Front Door
Standing Seam Black
Cladding
Smooth Gray
Foundation
Onyx Black
Roofing
Black
Windows & Trim
Bold Red
Front Door
Materials
Standing Seam Black
Cladding · Metal
Smooth Gray
Foundation · Stucco
Onyx Black
Roofing · Asphalt Shingle
Black
Windows & Trim · Aluminum
Bold Red
Front Door · Painted
About This Design
This expansive 6,823 sq ft house plan features a striking dark exterior with vertical siding and a bold red entry door. With 4 bedrooms and 6 bathrooms, it includes a large living area, kitchen, office, and a dedicated gym. The design boasts a substantial 732 sq ft covered front porch and a multi-car attached garage, along with an impressive 2,244 sq ft pool area for outdoor enjoyment.
Features
- hip
- multi-car attached
- vertical siding
- concrete
- covered porch
- large windows
Interior Layout

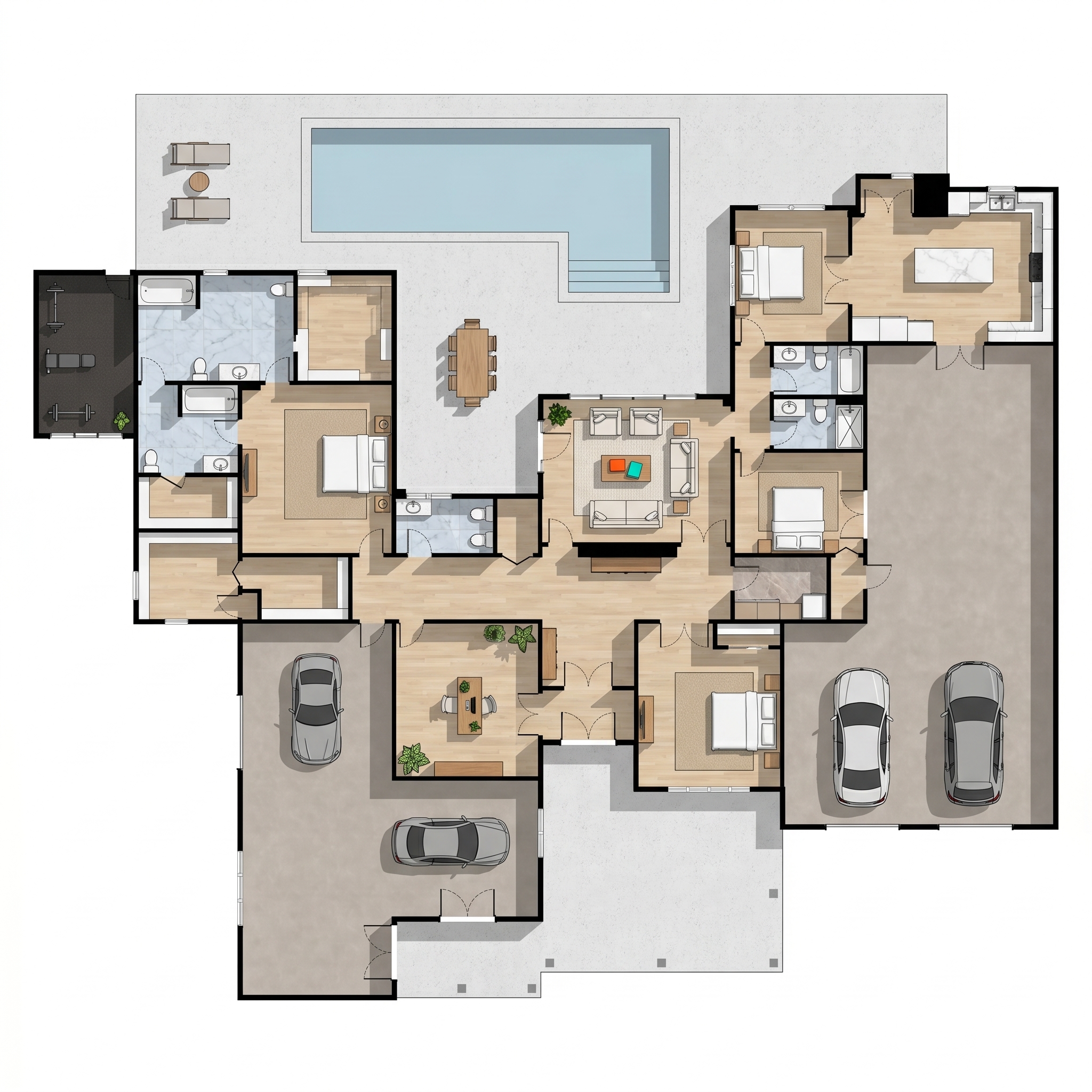

The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.
