Free 3 Bed Natural House Plan – 3,353 Sq Ft
Materials
Pine (Horizontal)
Cladding
Painted White
Foundation
Zinc
Roofing
Dark Bronze
Windows & Trim
Black
Front Door
Pine (Horizontal)
Cladding
Painted White
Foundation
Zinc
Roofing
Dark Bronze
Windows & Trim
Black
Front Door
Materials
Pine (Horizontal)
Cladding · Wood
Painted White
Foundation · Masonry
Zinc
Roofing · Metal
Dark Bronze
Windows & Trim · Aluminum
Black
Front Door · Painted
About This Design
This 3,353 sq ft house design offers 3 bedrooms and 2 baths, spanning 43' x 85'. The exterior features natural light wood siding paired with a white brick foundation, topped by a sleek metal hip roof. Key amenities include a large 745 sq ft attached garage, a dedicated office, and a generous 455 sq ft outdoor living space, providing ample room for daily activities and relaxation.
Features
- hip
- 3-car attached
- wood siding
- brick
- metal roofing
- covered porch
- outdoor living

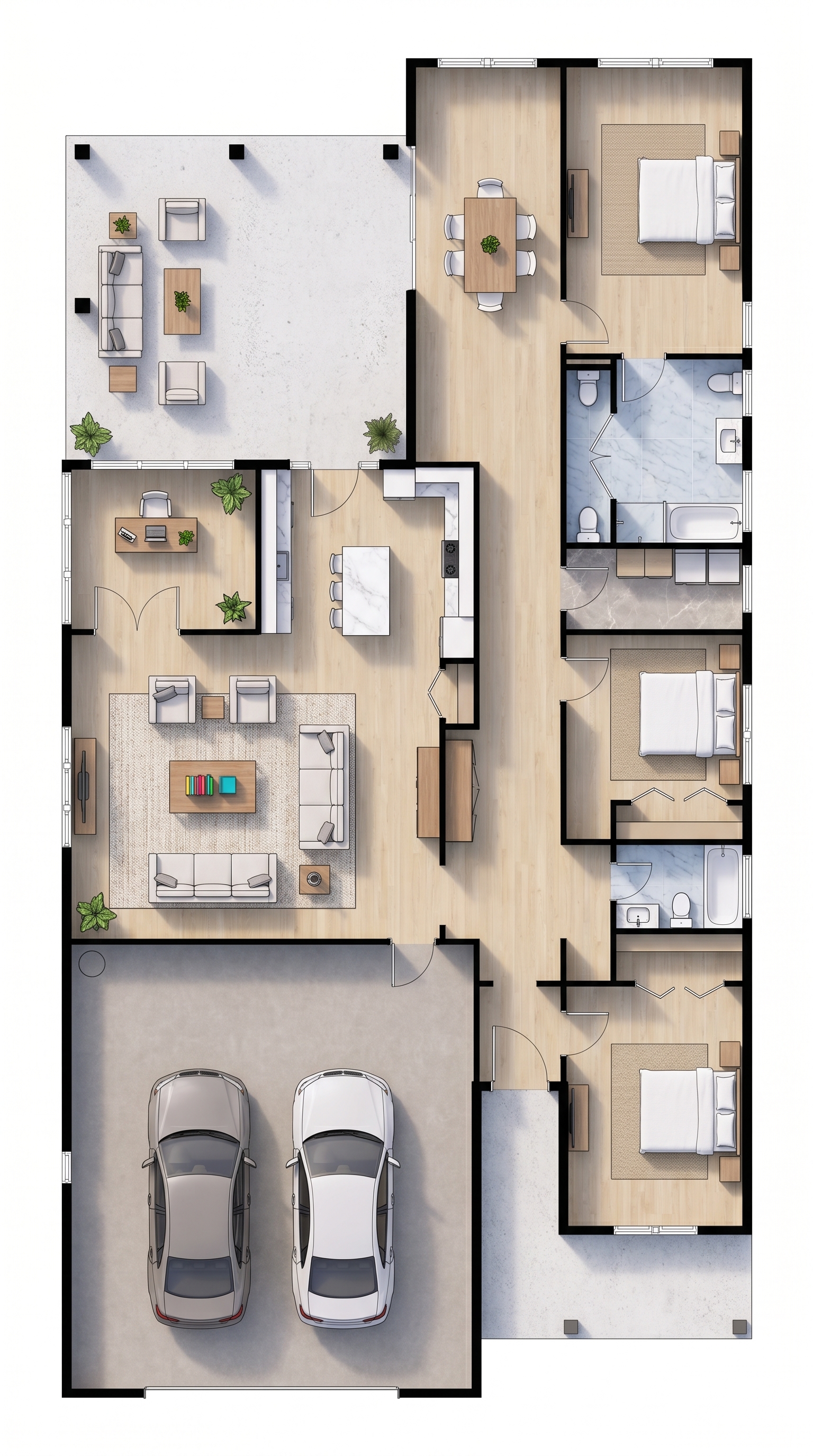

Interior Layout
The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.
Shape & Structure
The footprint shows the outline and proportions of this design.
Footprint
Loading footprint...
3D Preview
Loading 3D preview...
