Free 3 Bed Classic House Plan – 3,718 Sq Ft
Created by bennetster · Pinned 1 time
Free House PlanPrintable PDFPlan DXFAI House PlanAutoCAD, Revit & SketchUp
Free printable house plan PDF + workflow-ready DXF
Explore this free AI house plan with room-by-room layout details, printable PDF sharing, and plan DXF files built for AutoCAD, Revit, SketchUp, and Chief Architect workflows.
Review the exterior, floor plan, dimensions, and materials, then download a sample DXF to preview the CAD structure.
Free 3 Bed Classic House Plan – 3,718 Sq Ft
Materials
Dove Gray
Cladding
Slate Veneer
Foundation
Charcoal Shingle
Roofing
Black
Windows & Trim
White
Front Door
Dove Gray
Cladding
Slate Veneer
Foundation
Charcoal Shingle
Roofing
Black
Windows & Trim
White
Front Door
Materials
Dove Gray
Cladding · Fiber Cement
Slate Veneer
Foundation · Natural Stone
Charcoal Shingle
Roofing · Asphalt Shingle
Black
Windows & Trim · Aluminum
White
Front Door · Painted
About This Design
This 3,718 sqft Classic house plan offers 3 bedrooms and 1 bath, making efficient use of its generous footprint. The exterior showcases light grey horizontal siding, a dark hip roof, and a stone wainscoting, complemented by a welcoming covered front porch with white columns. Inside, enjoy a dedicated office, a large primary suite, and ample living spaces for comfortable everyday living. A substantial 990 sqft attached garage provides convenient parking and storage.
Features
- hip
- 2-car attached
- siding
- stone
- covered porch
Interior Layout

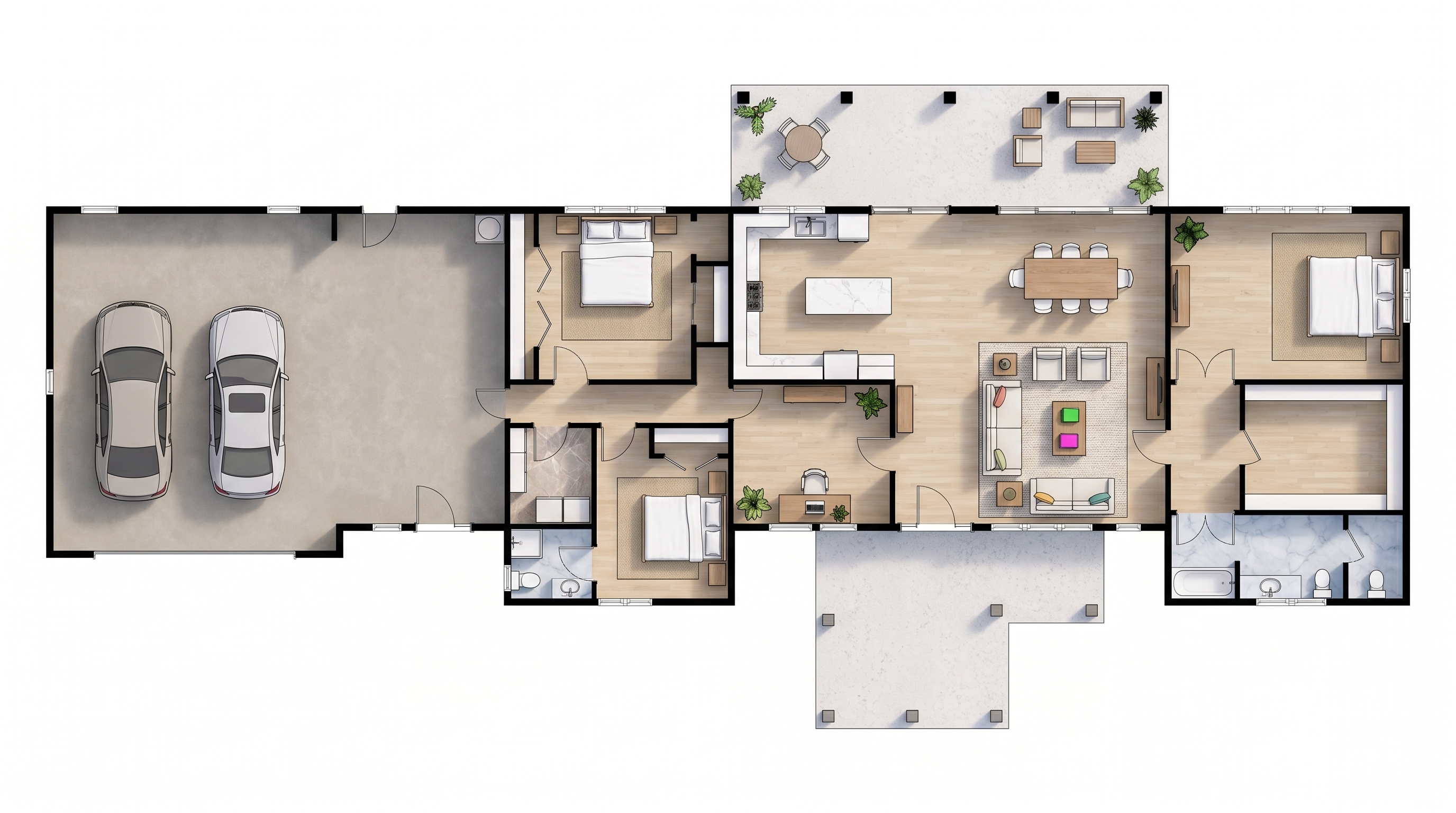

The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.
Shape & Structure
The footprint shows the outline and proportions of this design.
Footprint
Loading footprint...
3D Preview
Loading 3D preview...
Move forward
with this design
Click above to see preview
Share and print ready PDF
Present and compare designs with clients, builders, and family
Workflow-ready Plan DXF
Layered polylines with block-based doors and windows (download example)
Works with your tools
Import into AutoCAD, Revit, SketchUp, Chief Architect, and more
