Free 7 Bed Bright House Plan – 6,080 Sq Ft

7 bedroom bright house plan exterior - 6,080 sq ft

Materials

Dove Gray

Dove Gray

Cladding

Slate Veneer

Slate Veneer

Foundation

Charcoal Shingle

Charcoal Shingle

Roofing

Black

Black

Windows & Trim

White

White

Front Door

About This Design

This spacious 6,080 sqft Bright house plan features 7 bedrooms and 3 bathrooms, ideal for larger families. The exterior showcases light grey siding with a durable dark hip roof and a subtle stone foundation accent. A generously sized covered porch spans the front, providing ample outdoor living space. Inside, a large living area, kitchen, and dining room complement the extensive bedroom count, along with a dedicated office and plenty of storage. Designed for comfortable living across a 73' x 108' footprint.

Features

  • hip
  • none
  • siding
  • stone
  • covered porch

Interior Layout

The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.

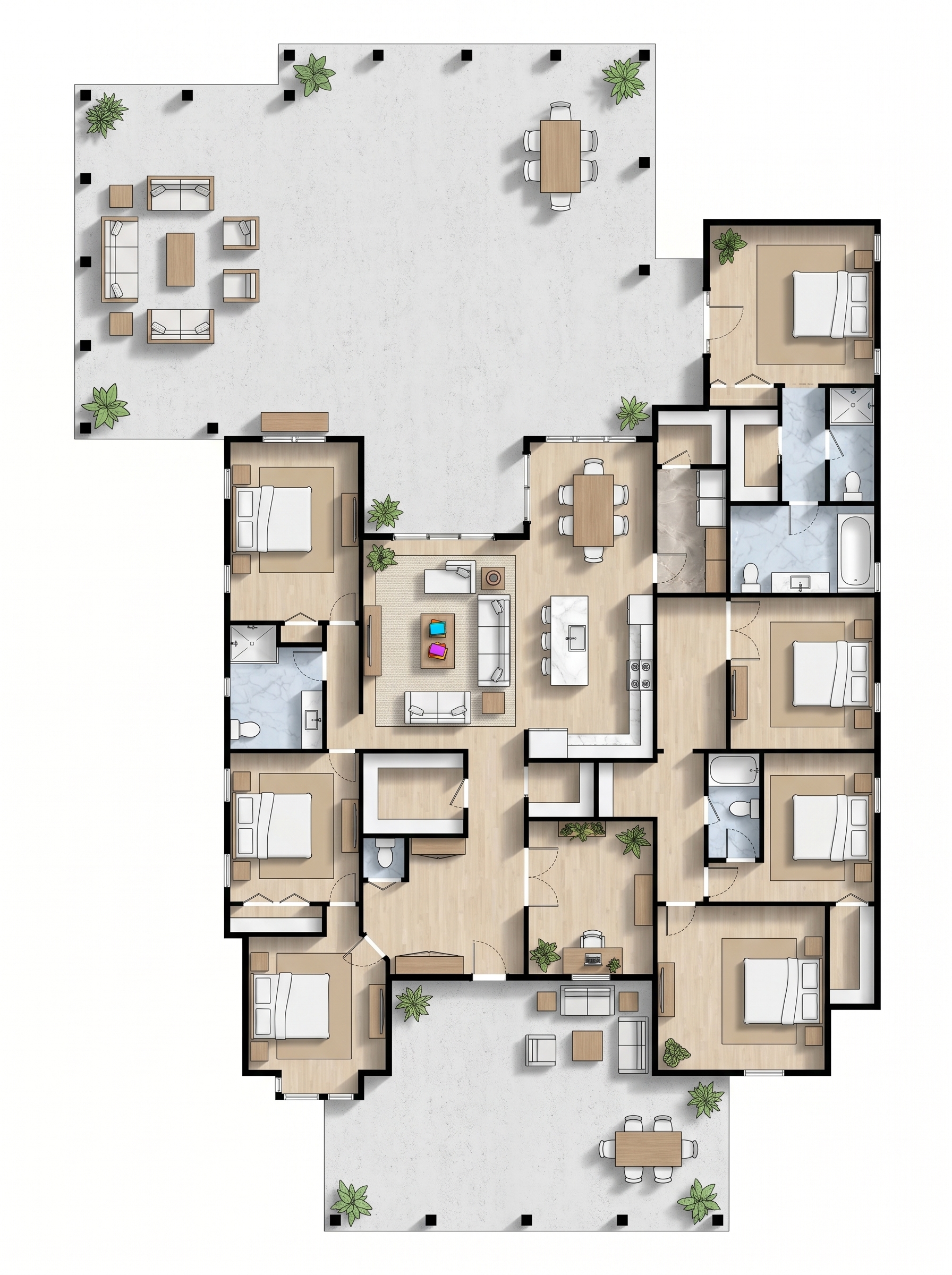

7 bedroom bright floor plan showing 3 bathrooms - 6,080 sq ft

Shape & Structure

The footprint shows the outline and proportions of this design.

Footprint

Loading footprint...

Move forward
with this design

Click above to see preview

Share and print ready PDF

Present and compare designs with clients, builders, and family

Workflow-ready Plan DXF

Layered polylines with block-based doors and windows (download example)

Works with your tools

Import into AutoCAD, Revit, SketchUp, Chief Architect, and more
