Free 1 Bed Dark House Plan – 756 Sq Ft
About This Design

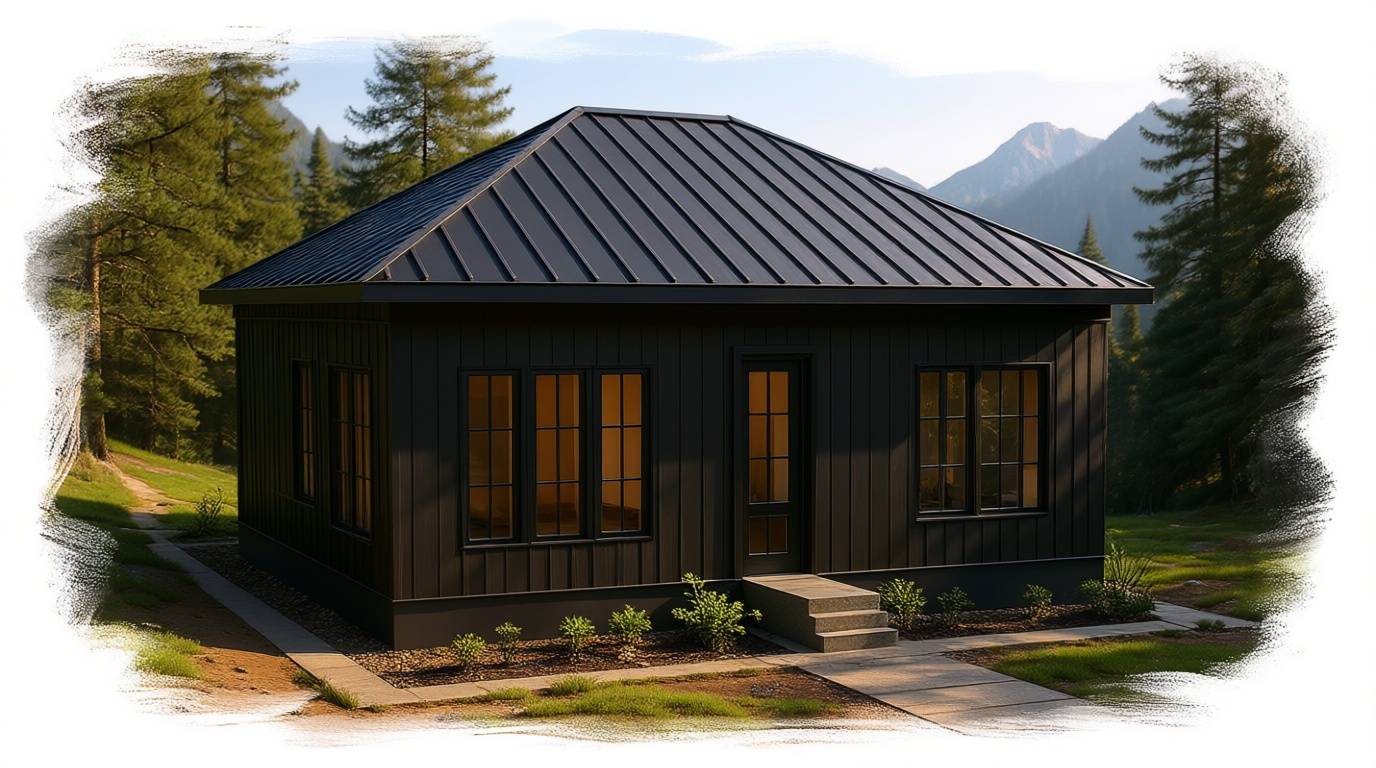

This compact 756 sqft house plan features 1 bedroom and 1 bathroom, perfect for a cozy retreat. The exterior showcases dark vertical wood siding and a black metal hip roof, complemented by large windows that invite natural light. Inside, find a spacious living room, efficient kitchen, a primary bedroom with an attached primary bath and closet, plus dedicated laundry and storage areas.
Features
- hip
- none
- wood siding
- large windows
Interior Layout

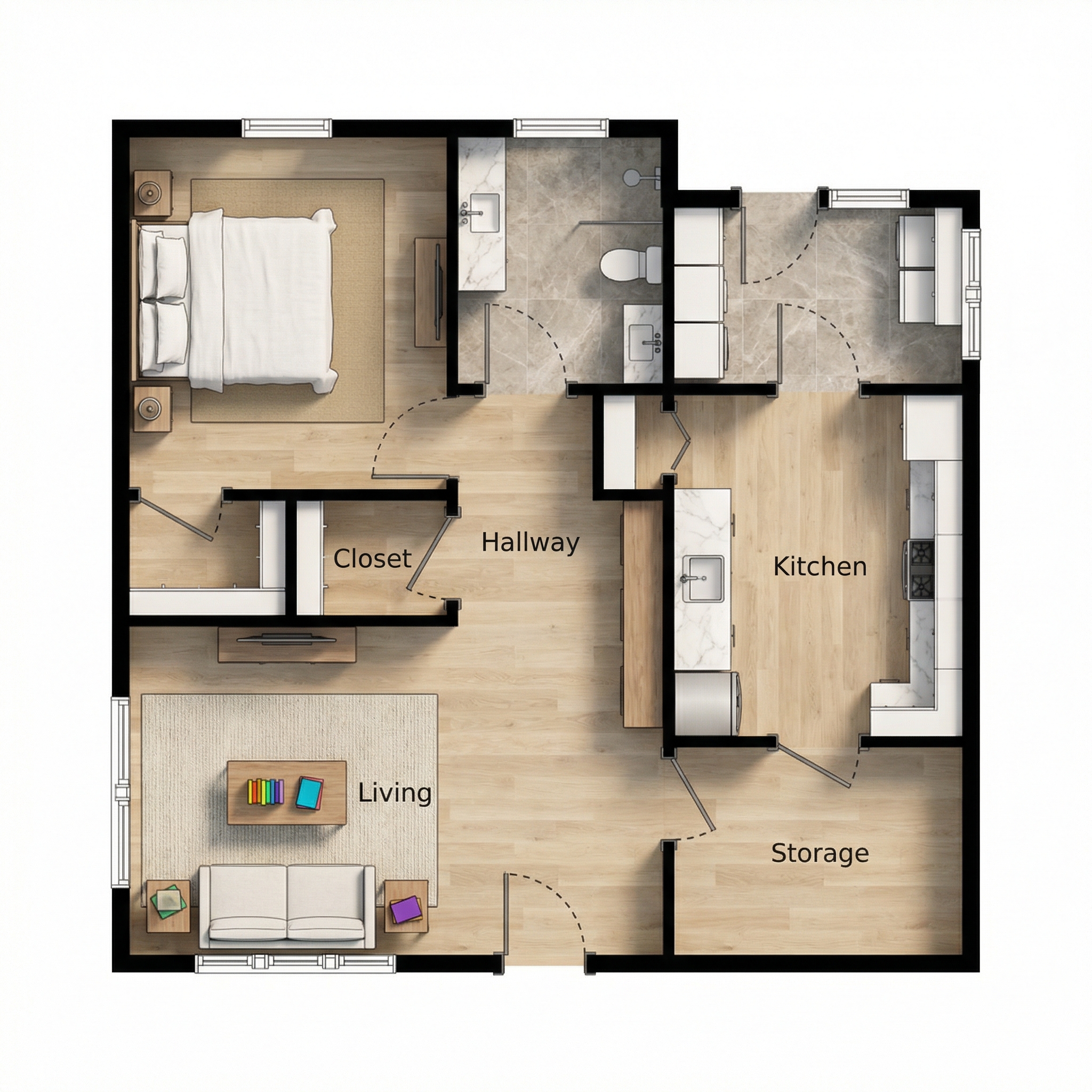

The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.
Shape & Structure
The footprint shows the outline and proportions of this design.
