Free 1 Bed Dark House Plan – 820 Sq Ft

1 bedroom dark house plan exterior - 820 sq ft

Materials

Smooth Gray

Smooth Gray

Cladding

Matches cladding

Matches cladding

Foundation

Standing Seam Black

Standing Seam Black

Roofing

White

White

Windows & Trim

White

White

Front Door

About This Design

This 820 sqft Dark plan features a single bedroom and one bathroom, designed for efficient living. The exterior showcases smooth gray stucco walls contrasted with a sleek black standing seam metal hip roof. White vinyl window frames and a solid white front door add a crisp touch. Inside, the compact layout includes a functional kitchen, a cozy family room, and a primary suite with ample closet space.

Features

  • hip
  • none
  • stucco
  • metal roof

Interior Layout

The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.

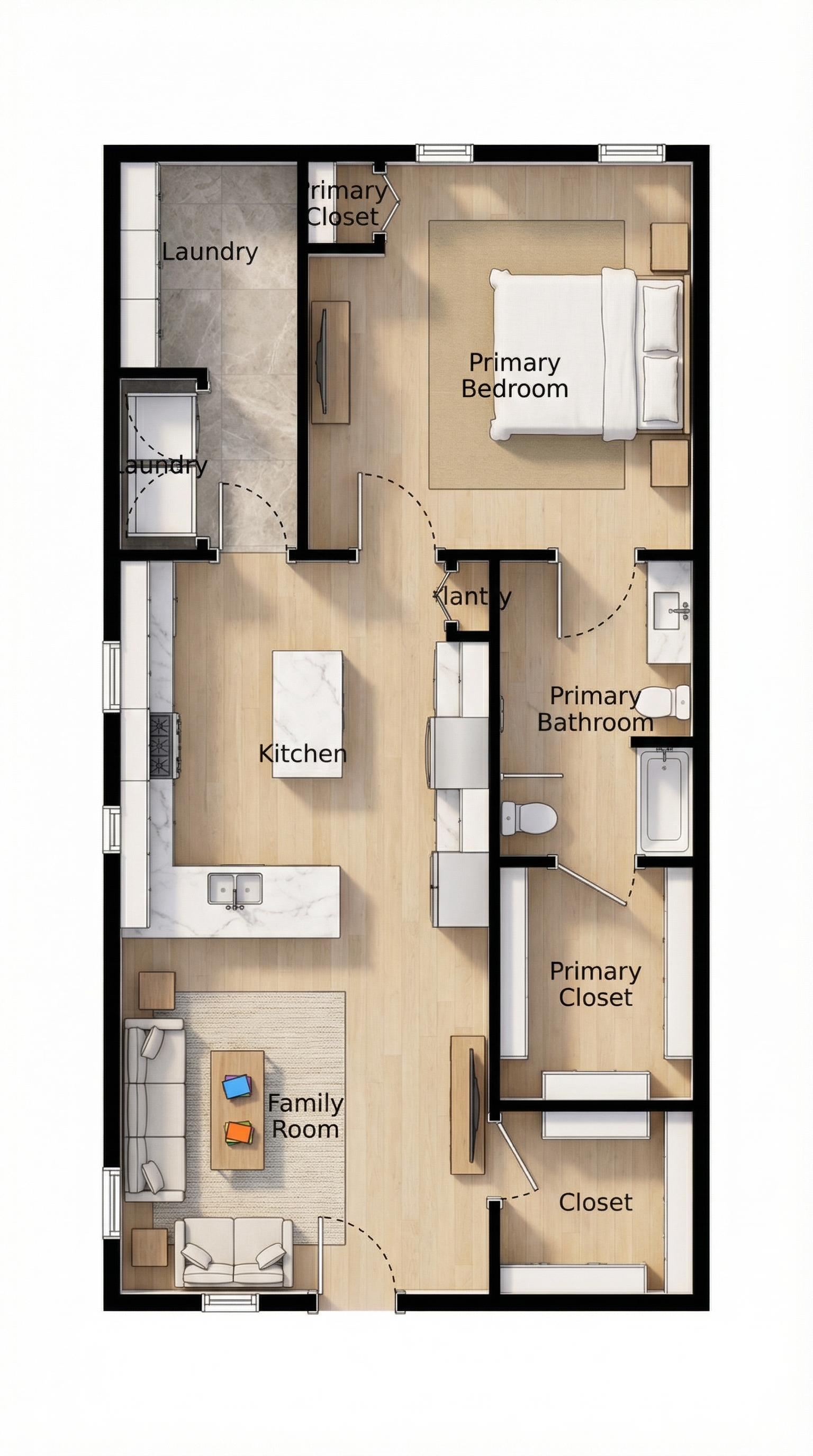

1 bedroom dark floor plan showing 1 bathrooms - 820 sq ft

Shape & Structure

The footprint shows the outline and proportions of this design.

Footprint

Loading footprint...

3D Preview

Loading 3D preview...

Move forward
with this design

Click above to see preview

Share and print ready PDF

Present and compare designs with clients, builders, and family

Workflow-ready Plan DXF

Layered polylines with block-based doors and windows (download example)

Works with your tools

Import into AutoCAD, Revit, SketchUp, Chief Architect, and more
