Spacious Bright 4-Bed House
by Leticia
Bright · 3,474 ft² · 4 bd · 5 ba
Explore this free AI house plan with room-by-room layout details, printable PDF sharing, and plan DXF files built for AutoCAD, Revit, SketchUp, and Chief Architect workflows.
Review the exterior, floor plan, dimensions, and materials, then download a sample DXF to preview the CAD structure.


Dove Gray
Cladding

Slate Veneer
Foundation

Charcoal Shingle
Roofing

Black
Windows & Trim

White
Front Door

Dove Gray
Cladding

Slate Veneer
Foundation

Charcoal Shingle
Roofing

Black
Windows & Trim

White
Front Door

Dove Gray
Cladding · Fiber Cement

Slate Veneer
Foundation · Natural Stone

Charcoal Shingle
Roofing · Asphalt Shingle

Black
Windows & Trim · Aluminum

White
Front Door · Painted
This 4-bed, 5-bath house plan offers 4051 sq ft across a 51' x 88' footprint. The design includes a primary suite, three additional bedrooms, an office, and extensive outdoor living space. A large kitchen with a pantry, dining area, and living room provide comfortable interiors. The classic exterior features light gray horizontal siding, dark stone accents, and a hip roof.

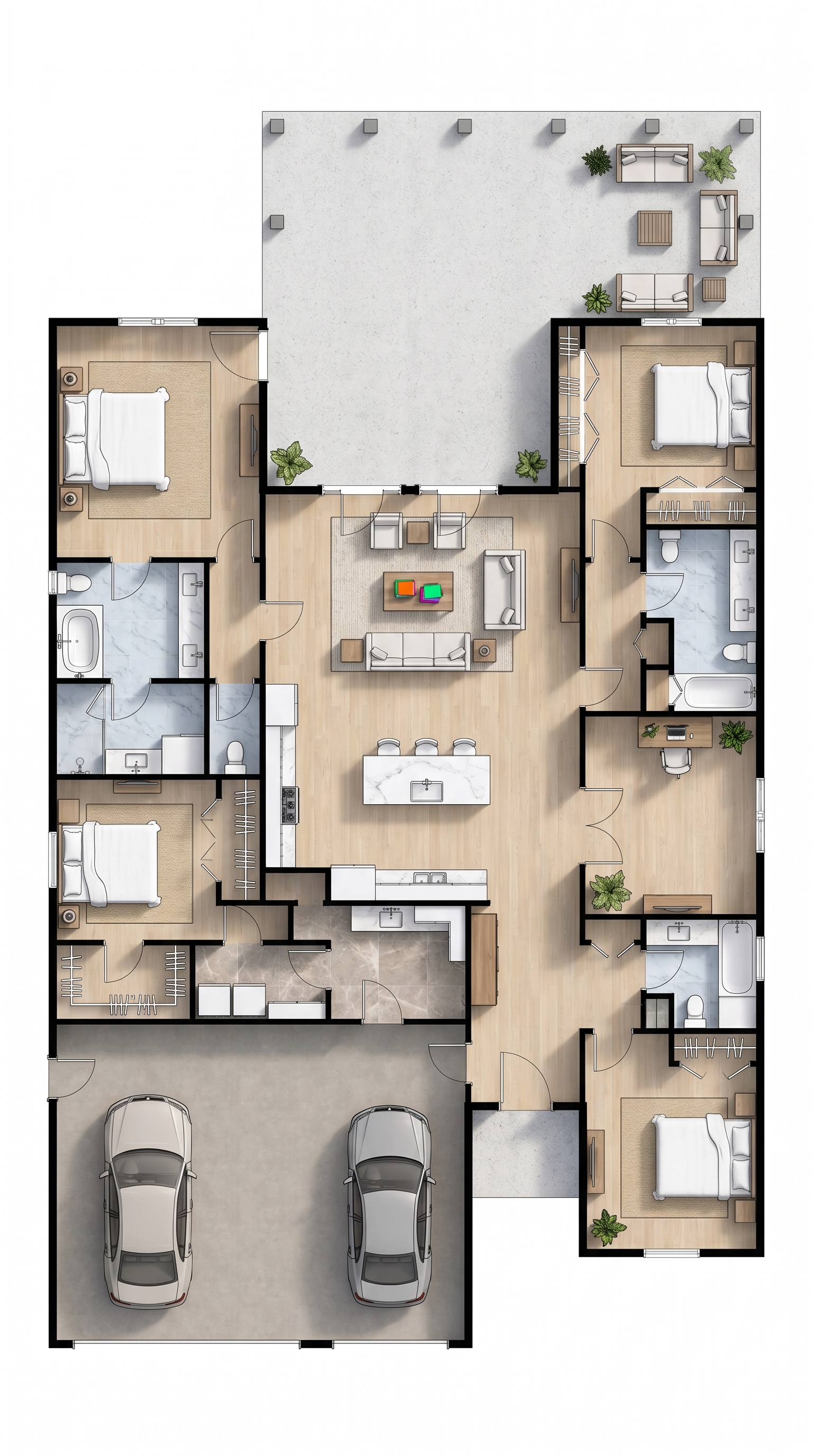

The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.

The footprint shows the outline and proportions of this design.
Share and print ready PDF
Present and compare designs with clients, builders, and family
Workflow-ready Plan DXF
Layered polylines with block-based doors and windows (download example)
Works with your tools
Import into AutoCAD, Revit, SketchUp, Chief Architect, and more
