Spacious Bright 4-Bed House
by Leticia
Bright · 3,474 ft² · 4 bd · 5 ba
Free House PlanPrintable PDFPlan DXFAI House PlanAutoCAD, Revit & SketchUp
Free printable house plan PDF + workflow-ready DXF
Explore this free AI house plan with room-by-room layout details, printable PDF sharing, and plan DXF files built for AutoCAD, Revit, SketchUp, and Chief Architect workflows.
Review the exterior, floor plan, dimensions, and materials, then download a sample DXF to preview the CAD structure.
Free 4 Bed Classic House Plan – 3,827 Sq Ft
Materials
Dove Gray
Cladding
Slate Veneer
Foundation
Charcoal Shingle
Roofing
Black
Windows & Trim
White
Front Door
Dove Gray
Cladding
Slate Veneer
Foundation
Charcoal Shingle
Roofing
Black
Windows & Trim
White
Front Door
Materials
Dove Gray
Cladding · Fiber Cement
Slate Veneer
Foundation · Natural Stone
Charcoal Shingle
Roofing · Asphalt Shingle
Black
Windows & Trim · Aluminum
White
Front Door · Painted
About This Design

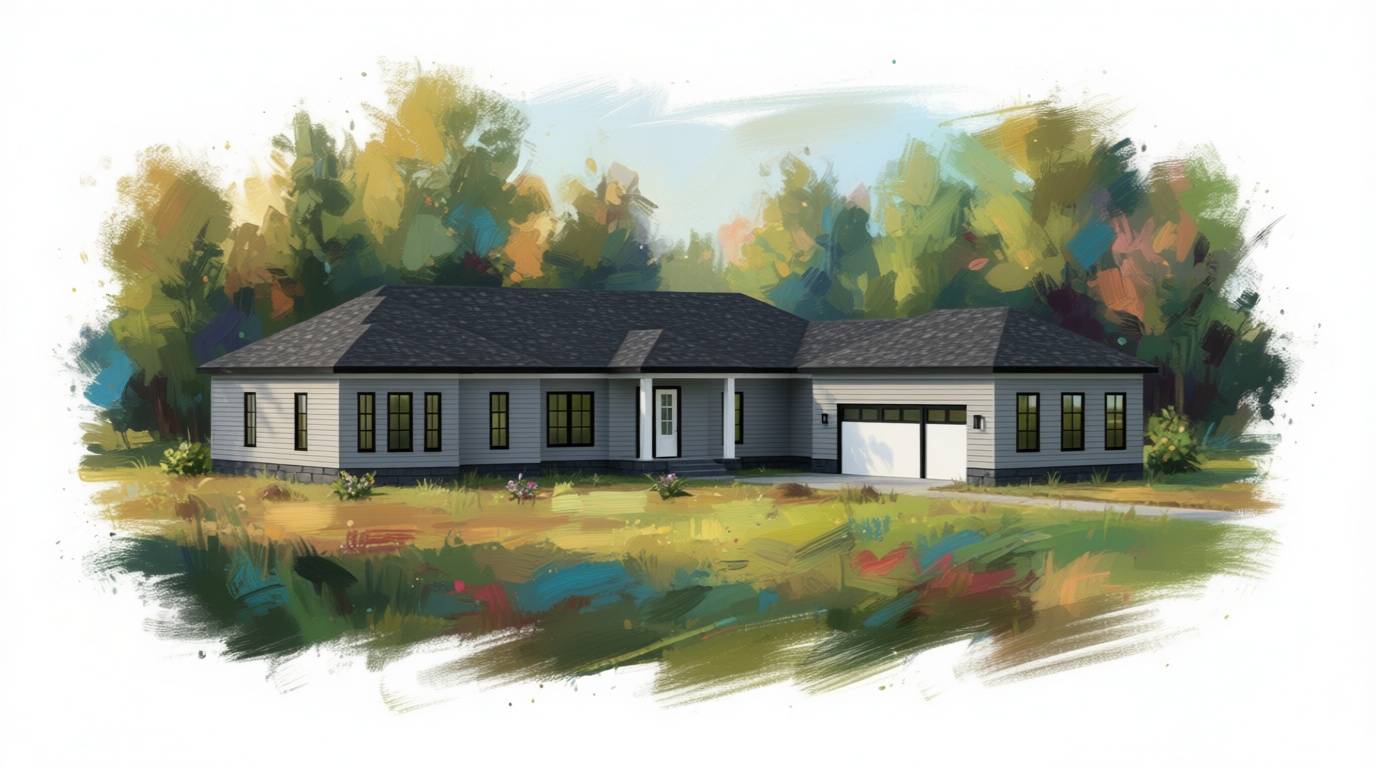

This sprawling 3,827 sq ft house features 4 bedrooms and 4 bathrooms. The exterior showcases light grey horizontal siding paired with a dark shingle roof and contrasting dark window frames, creating a classic aesthetic. A welcoming covered front porch provides entry, while a generous 2-car attached garage offers convenience. The design includes a large primary suite, a dedicated office, and an expansive outdoor living area.
Features
- hip
- 2-car attached
- siding
- shingle roof
- concrete base
- covered porch
Interior Layout

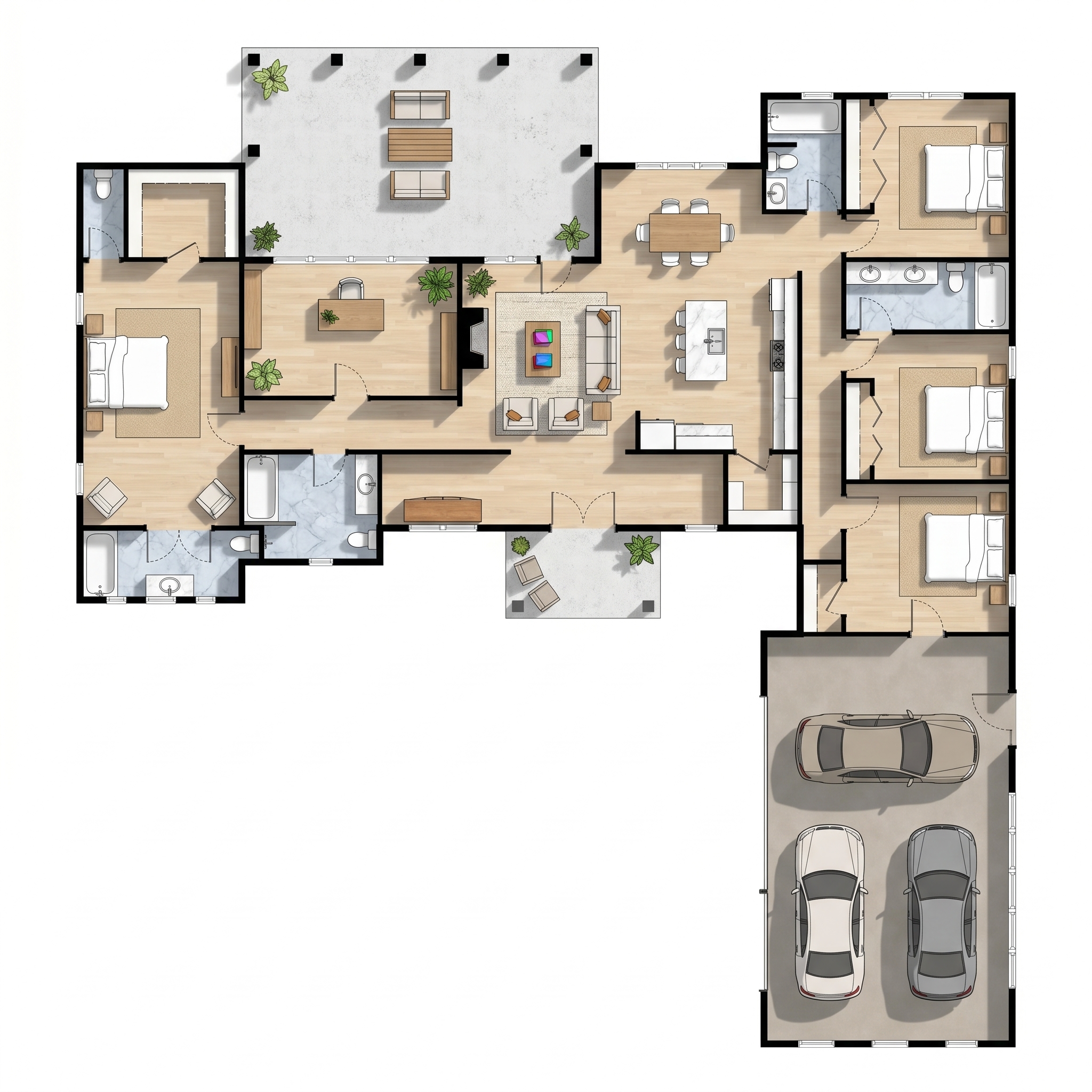

The floor plan below shows the room arrangement, walls, and doorways. Hover over rooms to see their names and dimensions.
Shape & Structure
The footprint shows the outline and proportions of this design.
Footprint
Loading footprint...
3D Preview
Loading 3D preview...
Move forward
with this design
Click above to see preview
Share and print ready PDF
Present and compare designs with clients, builders, and family
Workflow-ready Plan DXF
Layered polylines with block-based doors and windows (download example)
Works with your tools
Import into AutoCAD, Revit, SketchUp, Chief Architect, and more
